Tools / Foundation Engineering / Validation
Brinch Hansen Validation Results
Validation against BH Pile developed by ESAA reference calculations.
Suitable for preliminary engineering calculations. Final design requires independent engineering review.
validation scope
Validation Scope
0.74%
Median percent error
- Q1
- 0.27%
- Q3
- 1.52%
- Min
- -0.47%
- Max
- 4.92%
1.11%
Median percent error
- Q1
- 0.62%
- Q3
- 1.99%
- Min
- 0.03%
- Max
- 7.86%
1.81%
Median percent error
- Q1
- 1.22%
- Q3
- 2.71%
- Min
- -0.92%
- Max
- 7.53%
distribution
Percent Error Box Plots
evidence
Reference Evidence

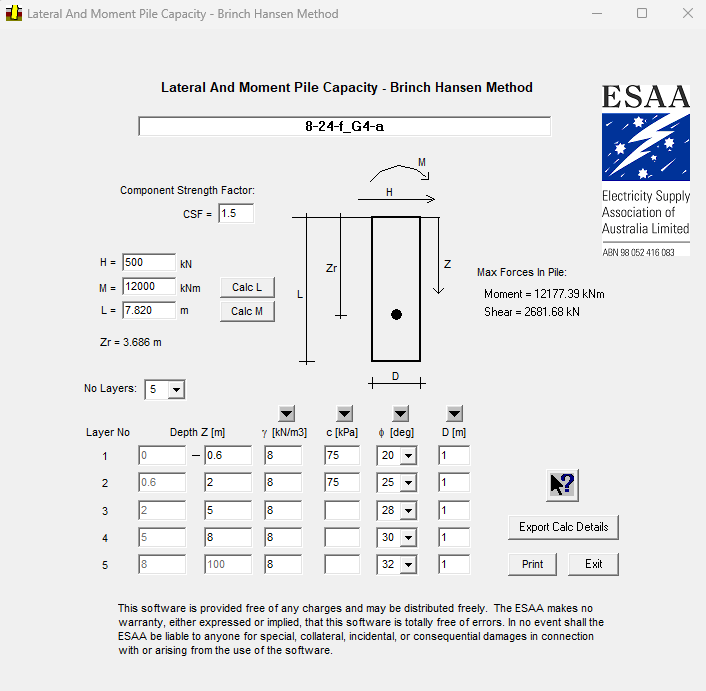

| Case | L HVTLHub | L BH Pile | L error | Zr error | M error | H error | Evidence |
|---|---|---|---|---|---|---|---|
| 12-21-a_G1 | 13.61 m | 13.61 m | 0.04% | 0.04% | 0.42% | 0.83% |
|
| 9-24-a_G1-a | 21.36 m | 21.35 m | 0.05% | 0.05% | 0.31% | 1.05% |
|

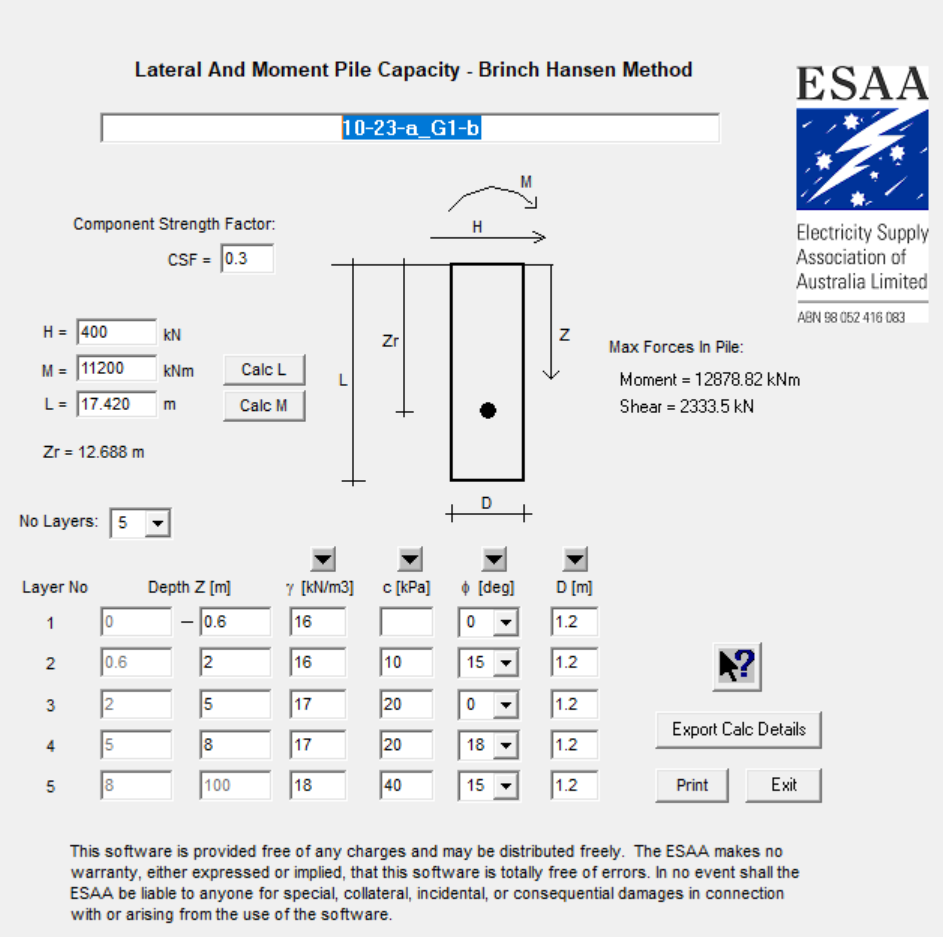

| 10-23-a_G1-b | 17.42 m | 17.42 m | 0.00% | 0.02% | 0.24% | 1.01% |
|

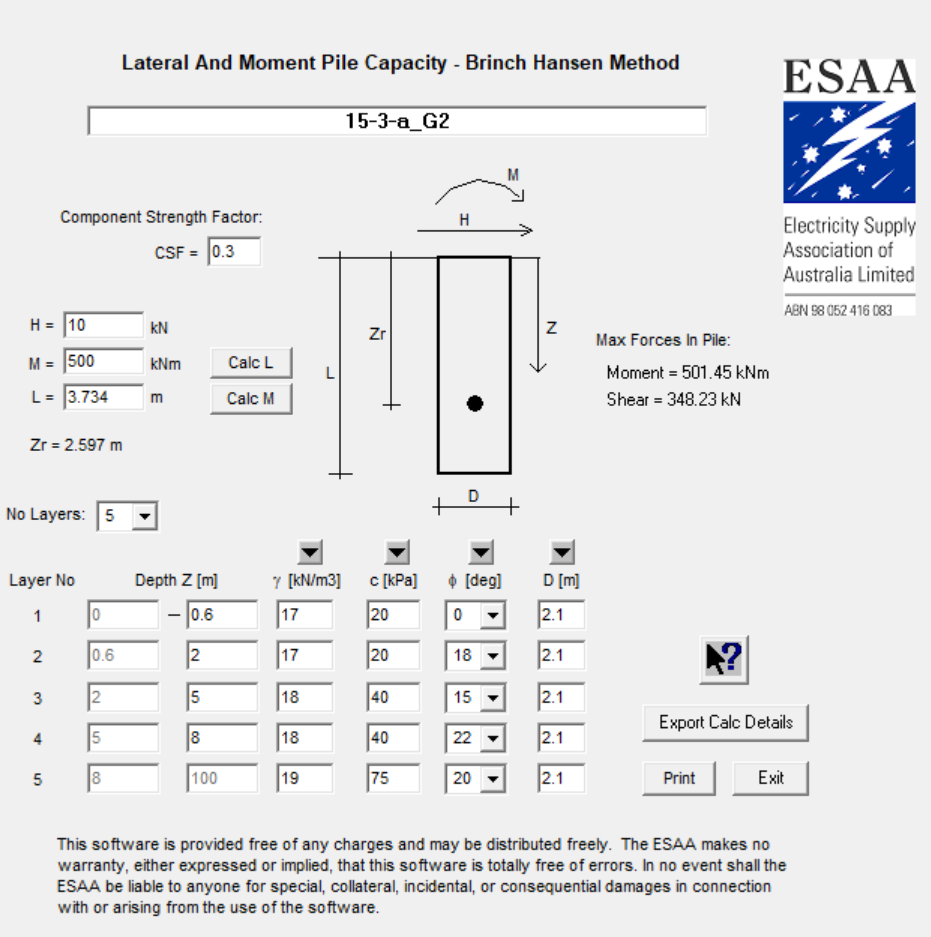

| 15-3-a_G2 | 3.79 m | 3.73 m | 1.50% | 2.43% | 0.23% | 1.58% |
|

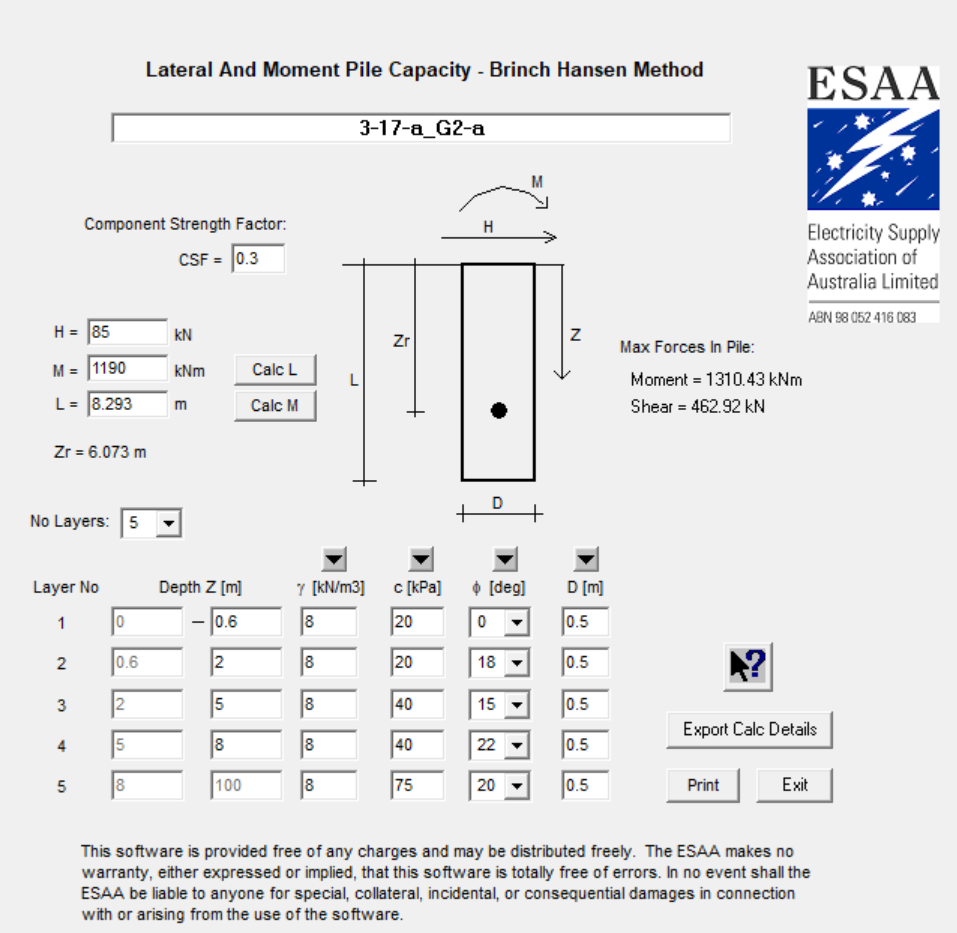

| 3-17-a_G2-a | 8.31 m | 8.29 m | 0.20% | 0.61% | 1.52% | 2.44% |
|

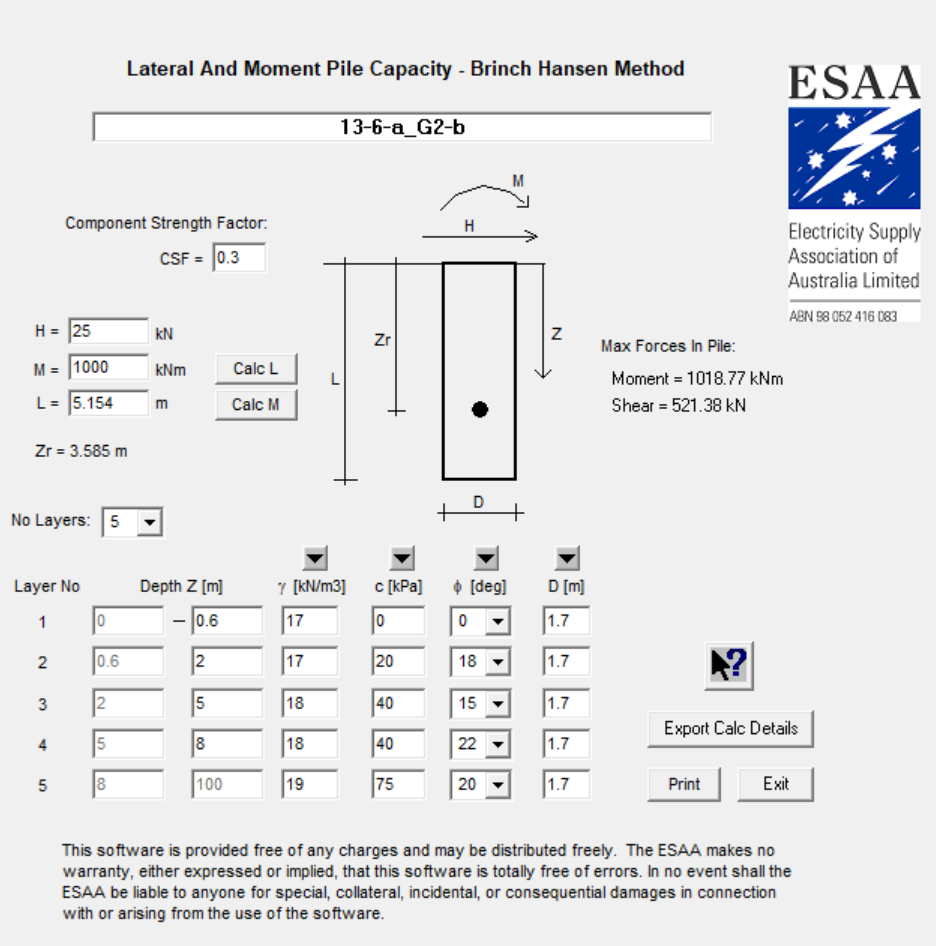

| 13-6-a_G2-b | 5.18 m | 5.15 m | 0.50% | 1.26% | 0.90% | 1.67% |
|

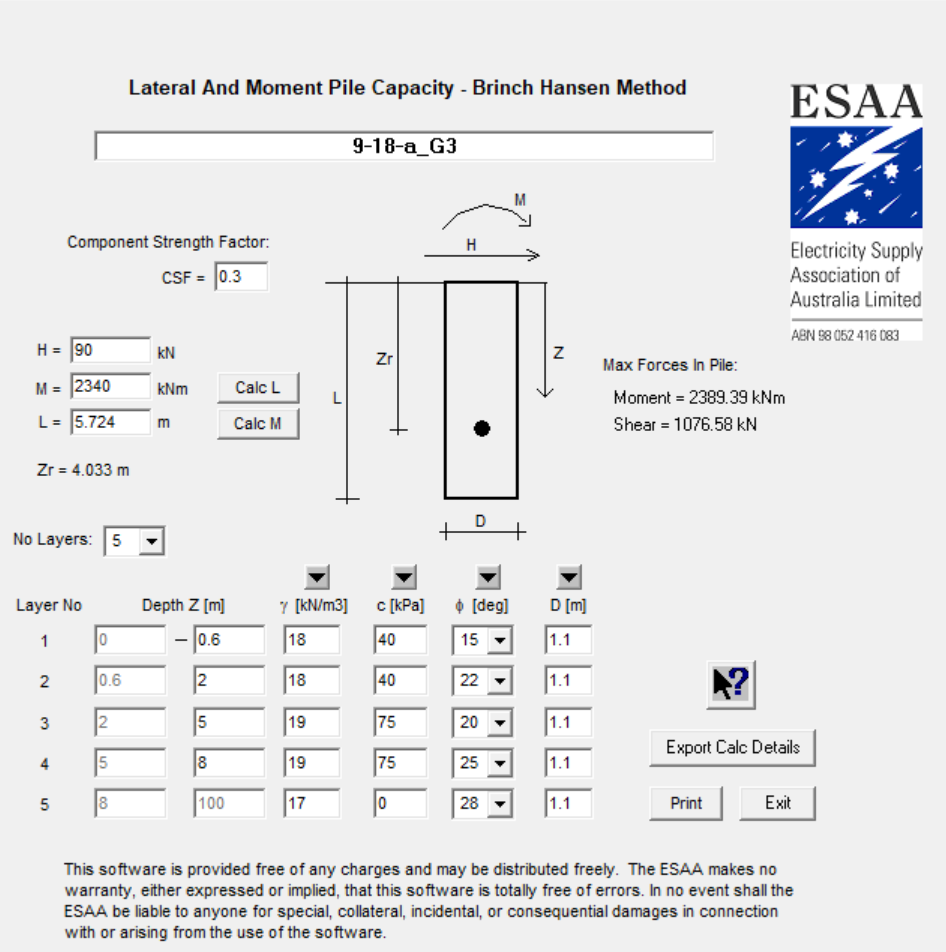

| 9-18-a_G3 | 5.74 m | 5.72 m | 0.28% | 0.67% | 0.31% | 0.88% |
|

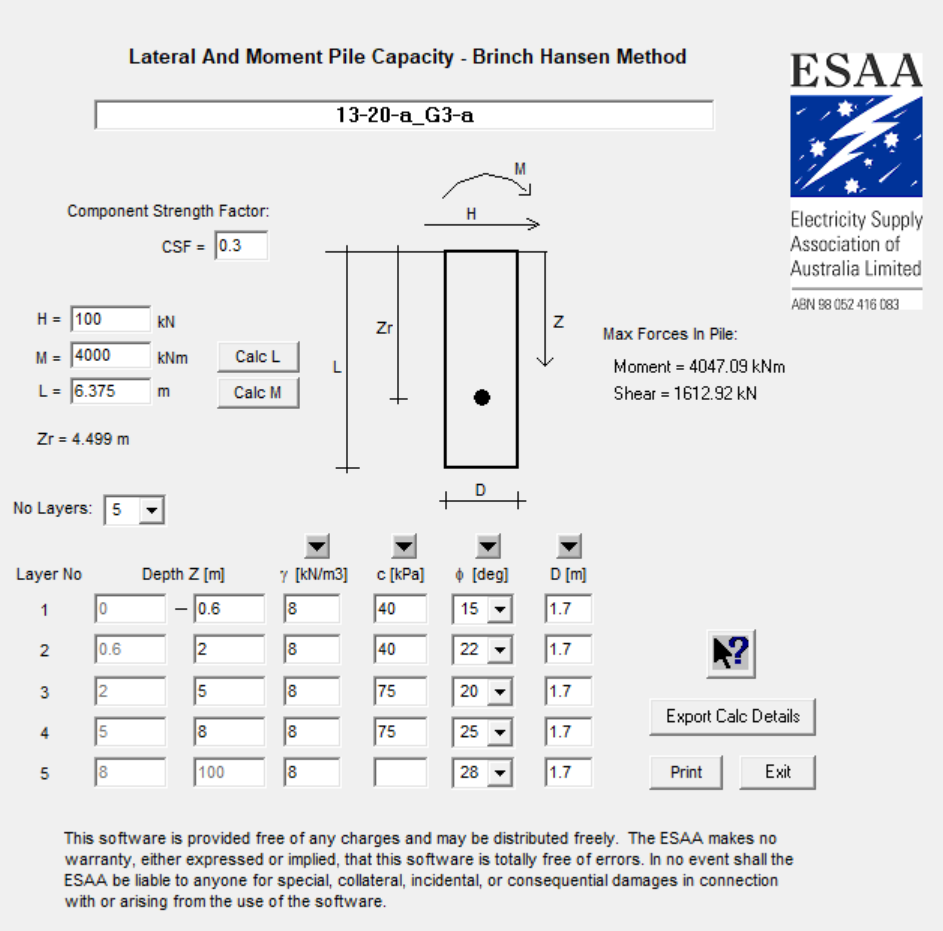

| 13-20-a_G3-a | 6.42 m | 6.38 m | 0.71% | 1.36% | 0.30% | 0.92% |
|

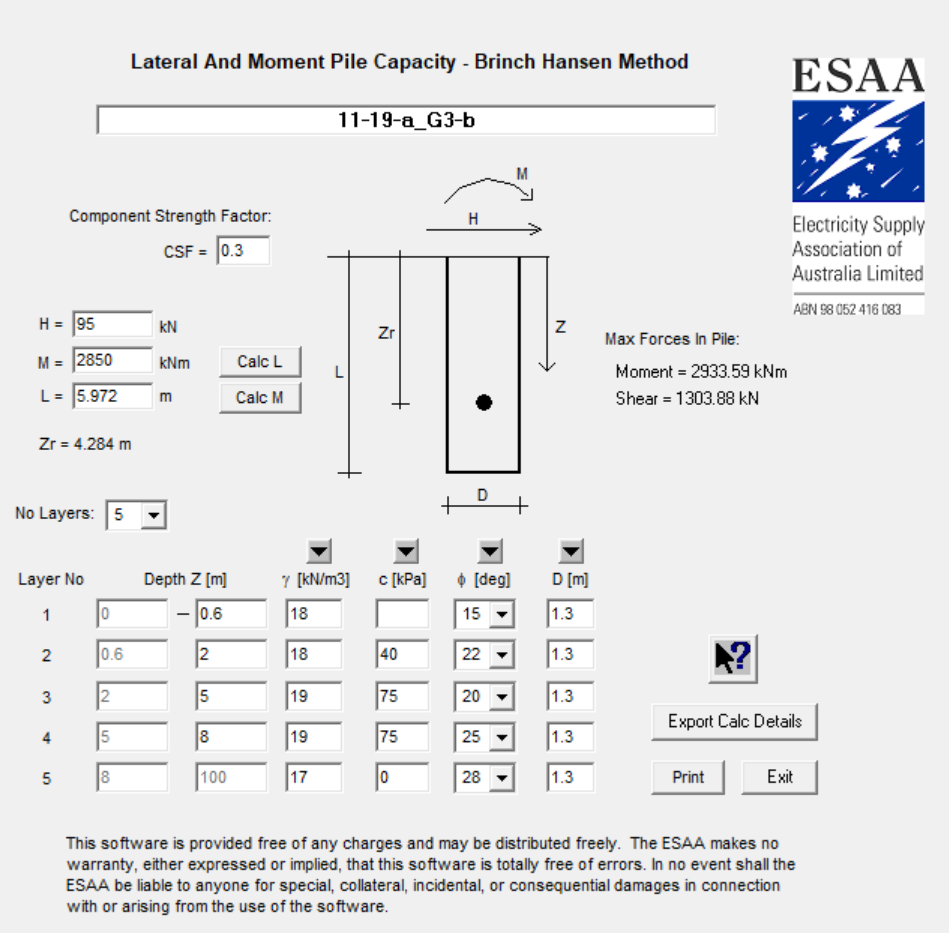

| 11-19-a_G3-b | 5.99 m | 5.97 m | 0.30% | 0.61% | 0.83% | 0.92% |
|

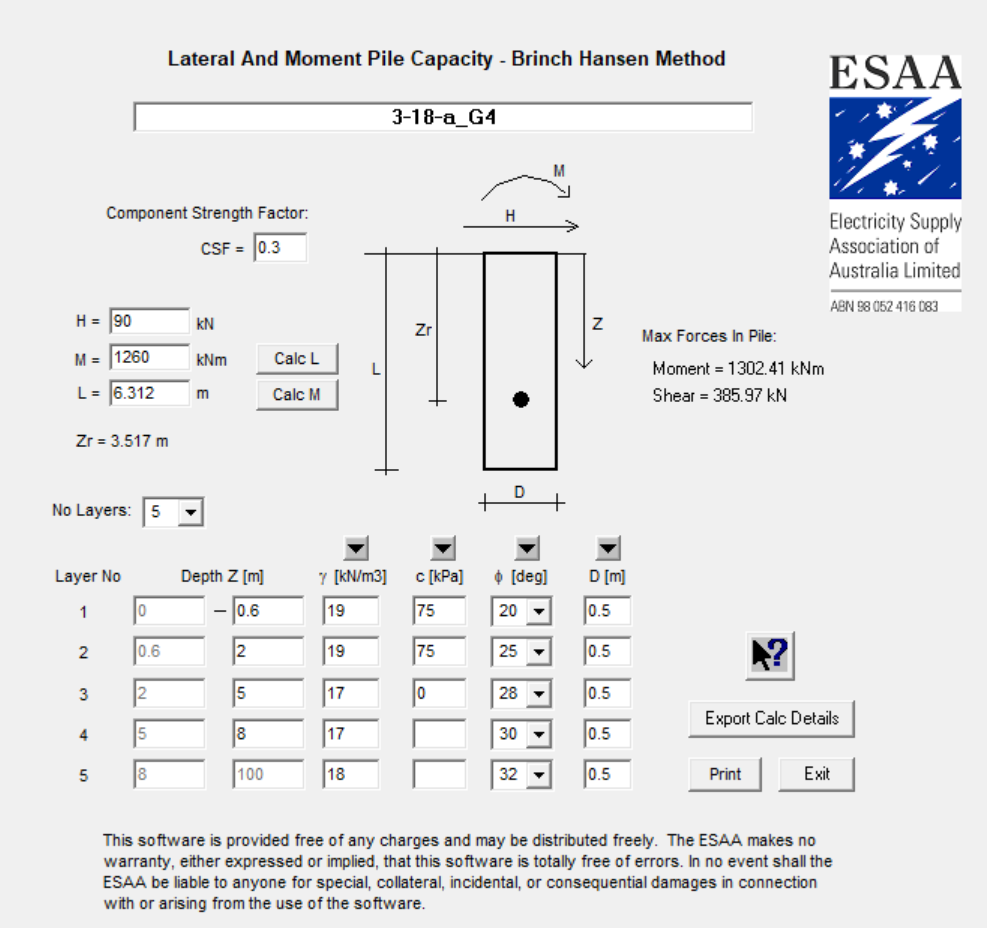

| 3-18-a_G4 | 6.32 m | 6.31 m | 0.13% | 1.22% | 0.27% | 1.13% |
|

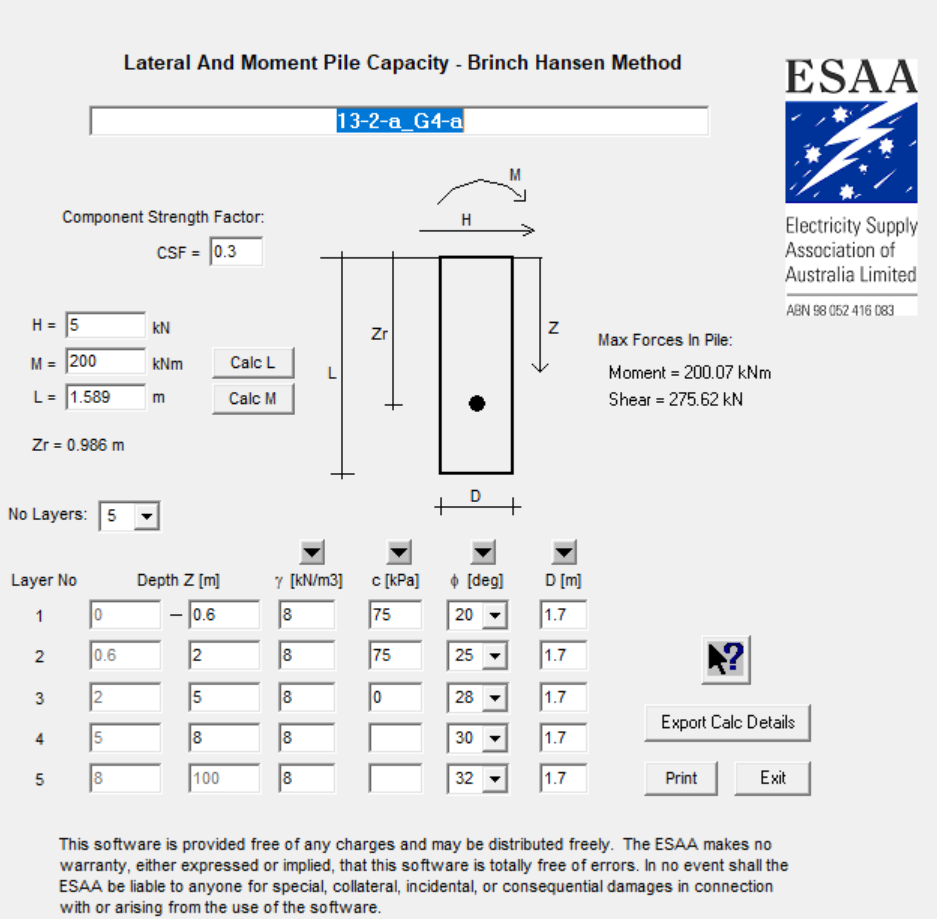

| 13-2-a_G4-a | 1.62 m | 1.59 m | 1.95% | 3.45% | 2.08% | 0.36% |
|

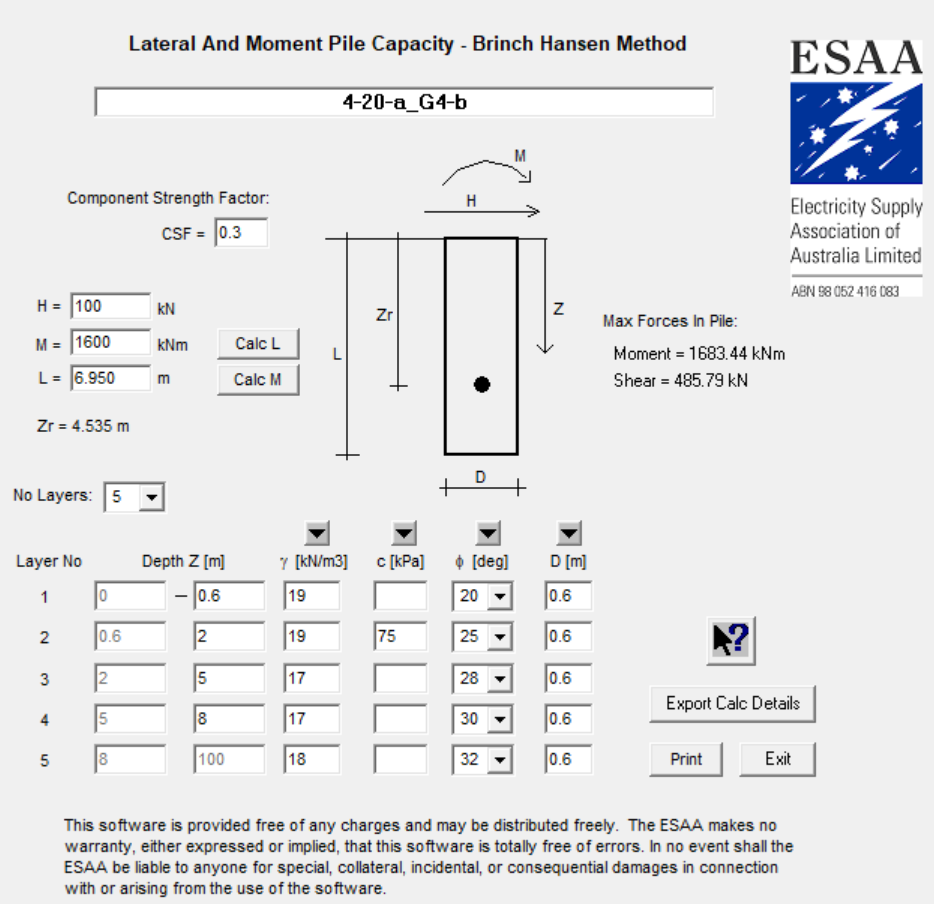

| 4-20-a_G4-b | 6.96 m | 6.95 m | 0.14% | 0.33% | 0.17% | 0.86% |
|

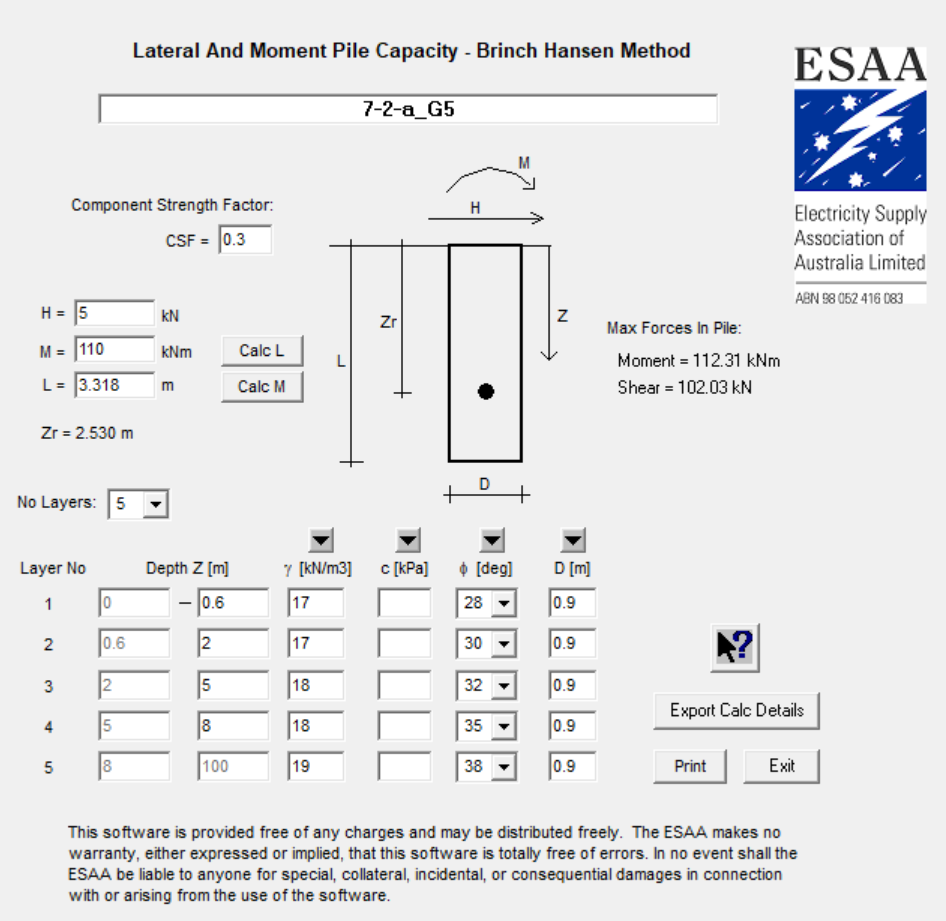

| 7-2-a_G5 | 3.34 m | 3.32 m | 0.66% | 1.19% | 4.00% | 4.24% |
|

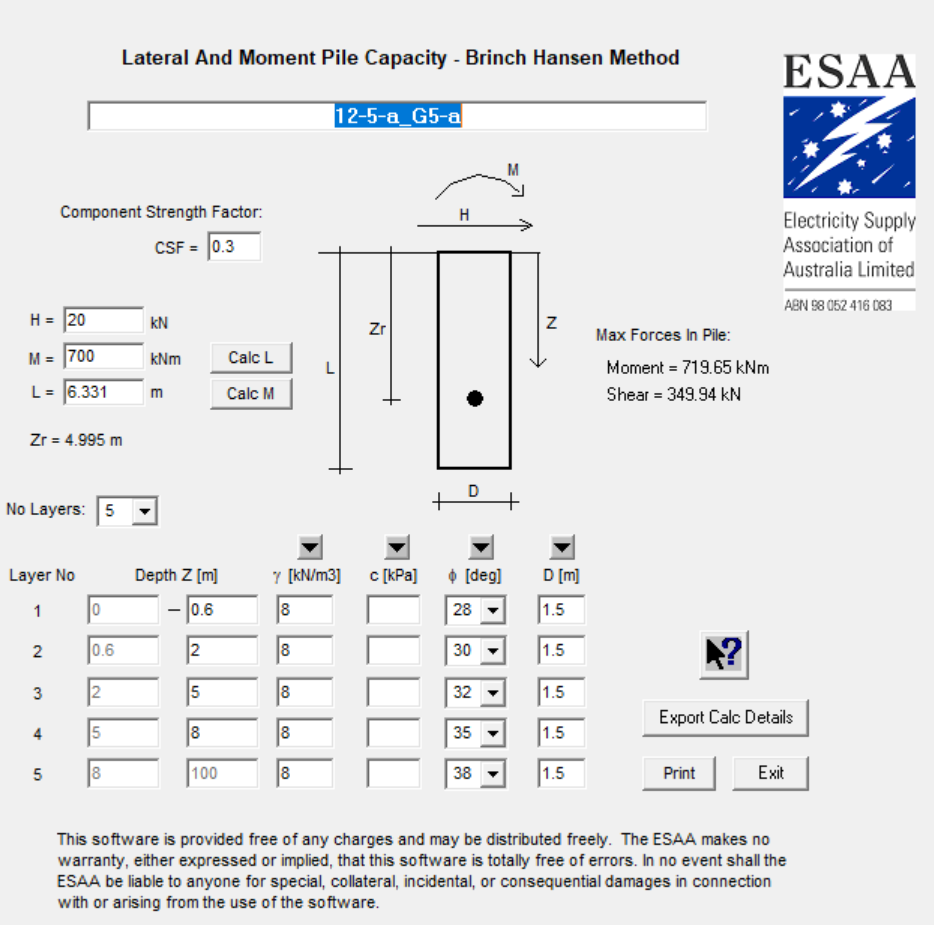

| 12-5-a_G5-a | 6.35 m | 6.33 m | 0.30% | 0.30% | 0.89% | 1.56% |
|
| 15-12-a_G5-b | 7.14 m | 7.14 m | 0.07% | 0.00% | 1.33% | 1.27% |
|
| 10-13-a_G6 | 5.95 m | 5.95 m | -0.02% | 0.54% | 0.96% | 2.57% |
|
| 9-15-a_G6-a | 7.86 m | 7.89 m | -0.32% | -0.08% | 1.80% | 3.04% |
|

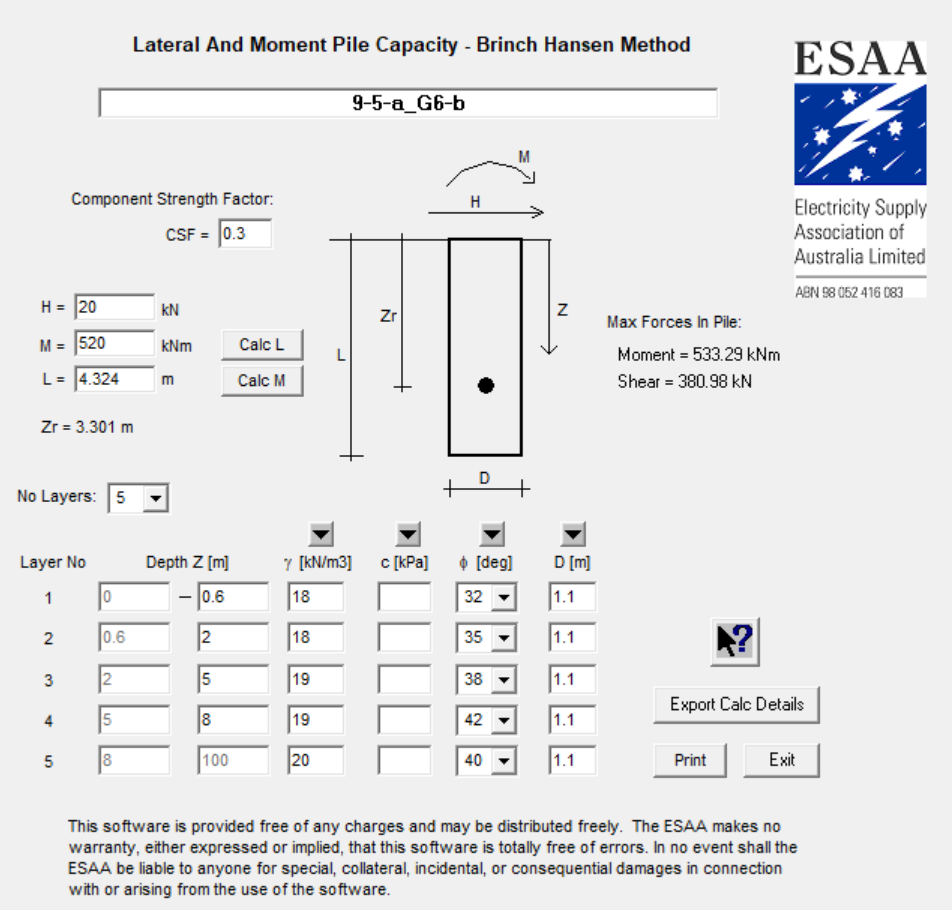

| 9-5-a_G6-b | 4.33 m | 4.32 m | 0.14% | 0.58% | 2.13% | 3.55% |
|

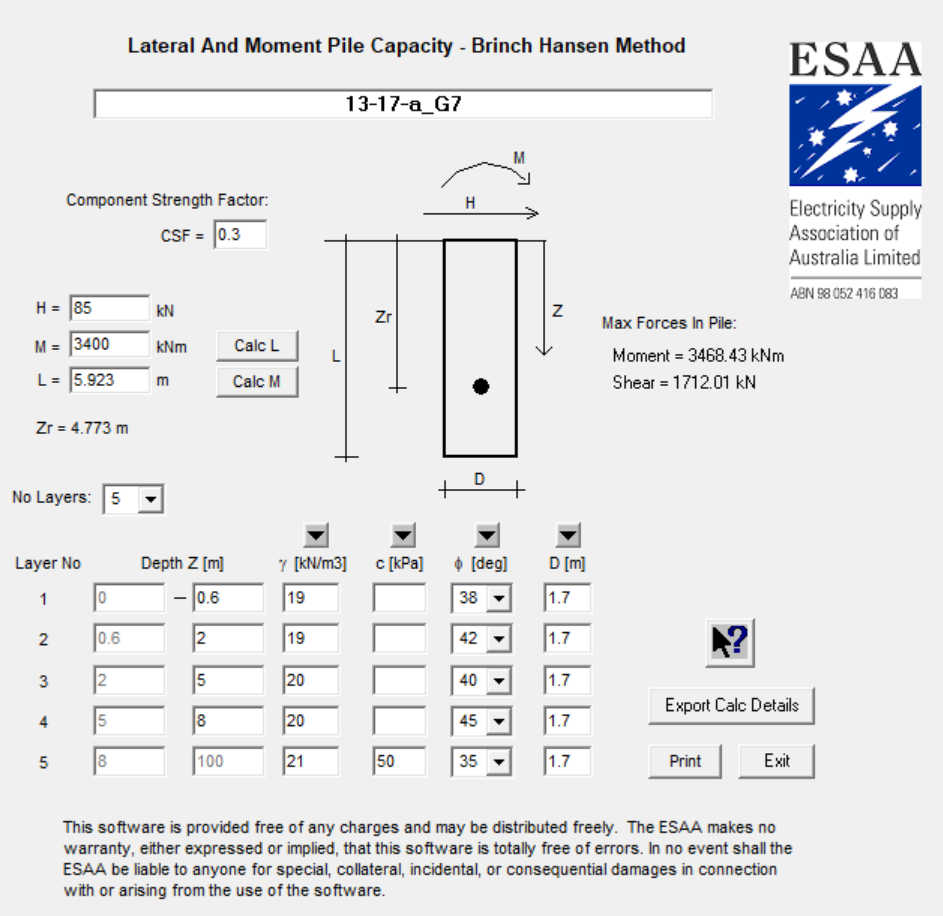

| 13-17-a_G7 | 5.93 m | 5.92 m | 0.12% | 0.36% | 0.45% | 0.64% |
|
| 9-4-a_G7-a | 4.60 m | 4.60 m | -0.07% | -0.03% | 1.33% | 1.44% |
|

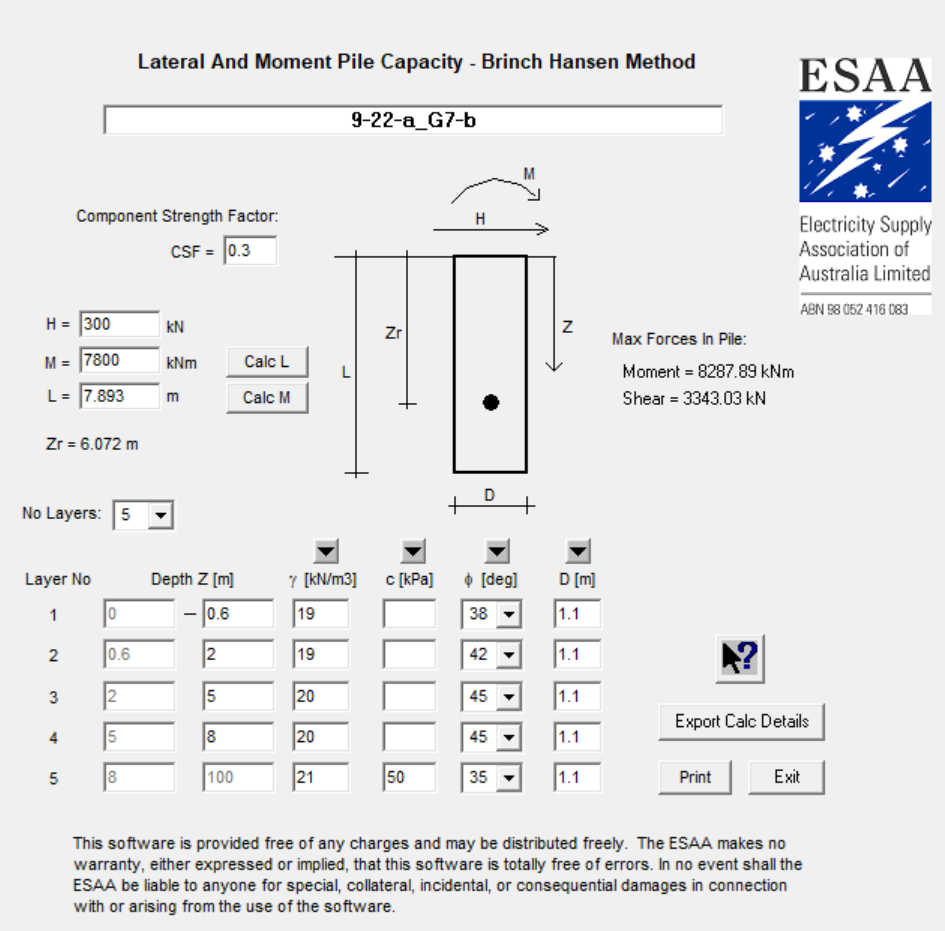

| 9-22-a_G7-b | 8.46 m | 8.44 m | 0.19% | 0.26% | 1.06% | 1.29% |
|

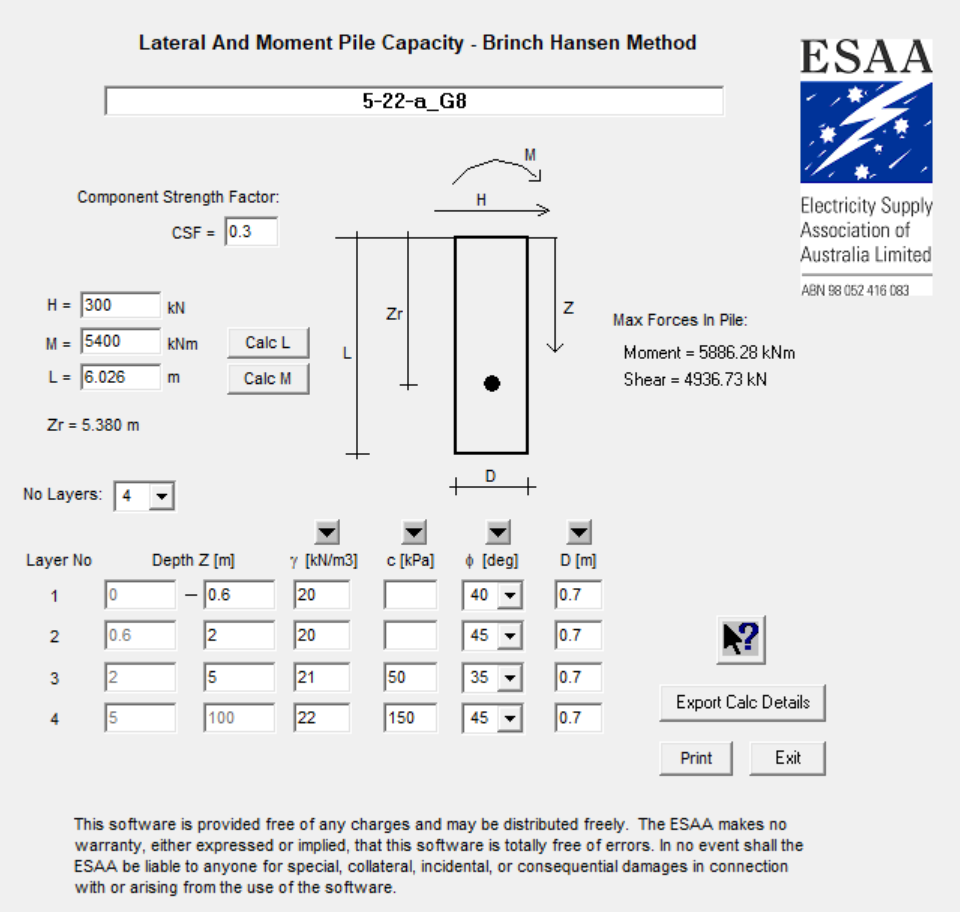

| 5-22-a_G8 | 6.06 m | 6.03 m | 0.56% | 0.56% | 1.56% | 3.06% |
|
| 2-4-a_G8-a | 3.24 m | 3.22 m | 0.68% | 0.92% | 2.33% | 2.65% |
|
| 15-21-a_G8-b | 5.90 m | 5.89 m | 0.25% | 0.36% | 0.70% | 1.58% |
|

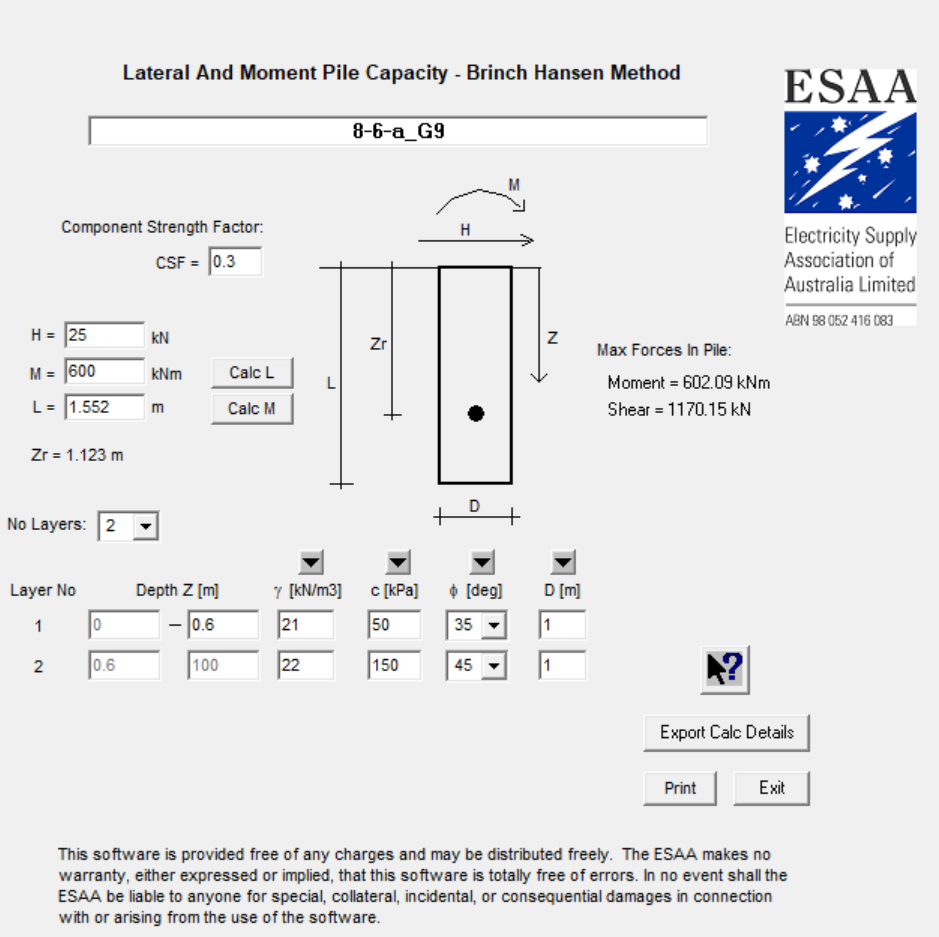

| 8-6-a_G9 | 1.56 m | 1.55 m | 0.52% | 1.51% | 0.51% | 1.81% |
|

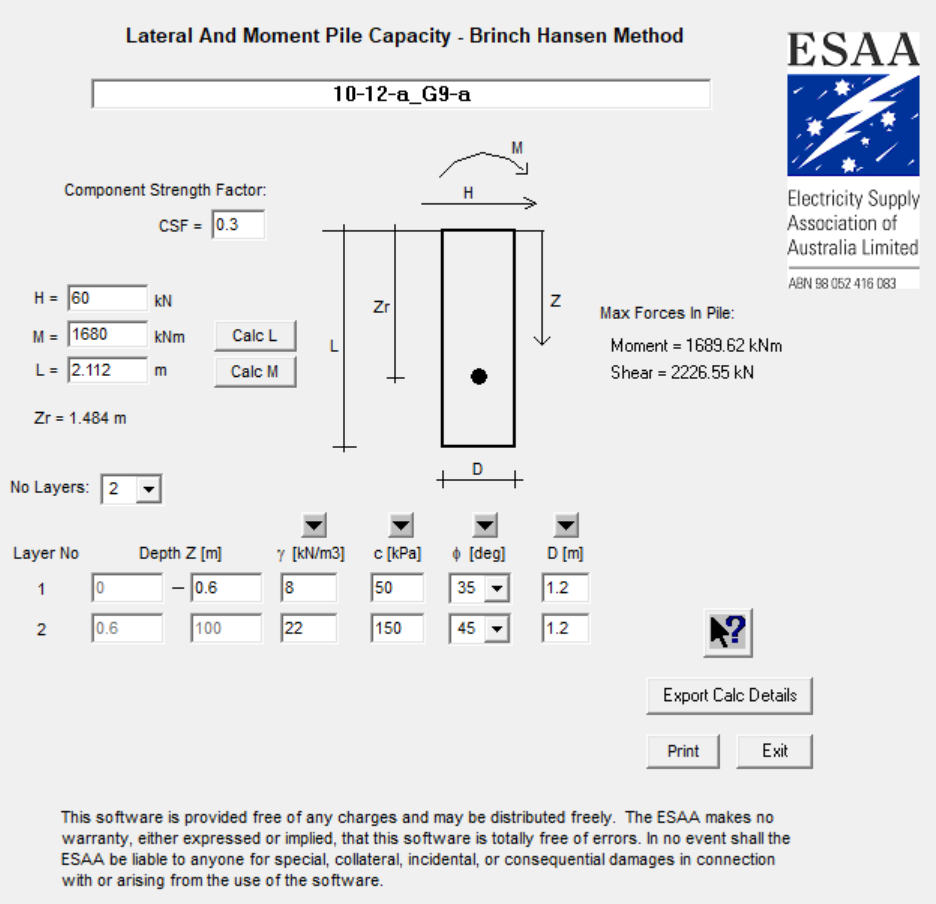

| 10-12-a_G9-a | 2.12 m | 2.11 m | 0.38% | 1.08% | 0.69% | 1.56% |
|

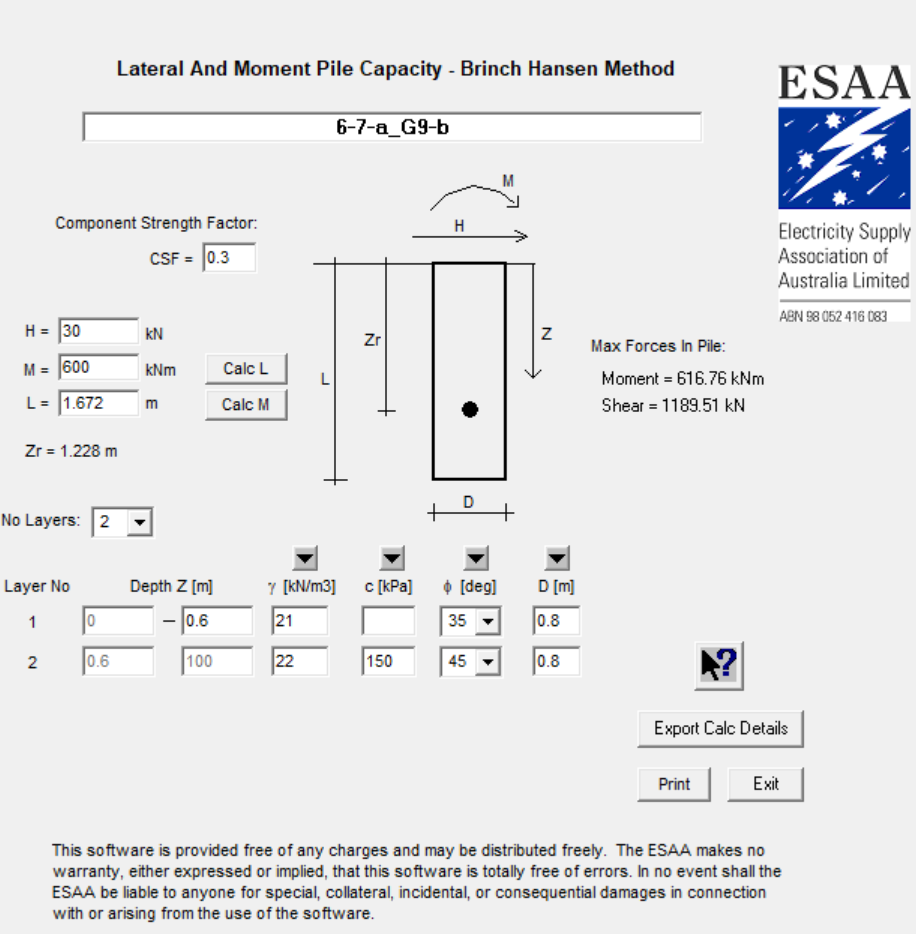

| 6-7-a_G9-b | 1.69 m | 1.67 m | 1.08% | 1.79% | 3.77% | 3.27% |
|
| 9-17-b_G1 | 8.82 m | 8.77 m | 0.60% | 0.74% | 1.66% | 2.81% |
|

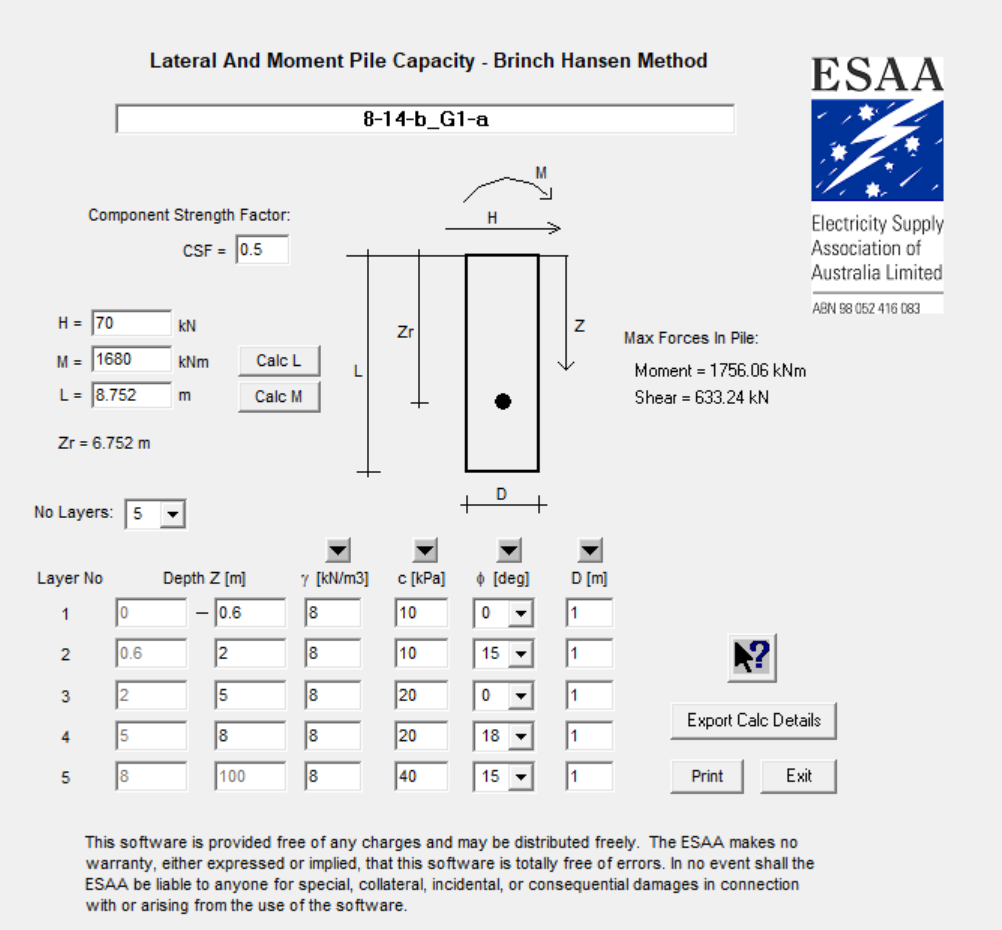

| 8-14-b_G1-a | 8.78 m | 8.75 m | 0.32% | 0.56% | 0.66% | 2.01% |
|

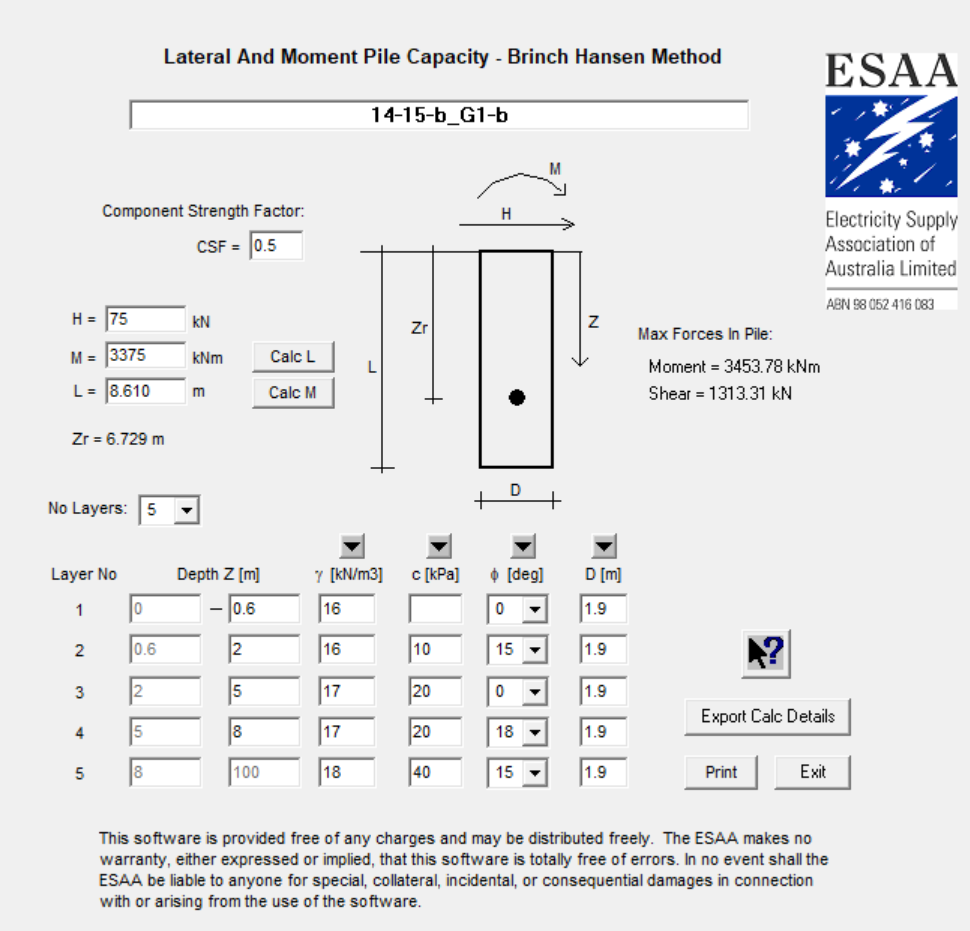

| 14-15-b_G1-b | 8.63 m | 8.61 m | 0.23% | 0.46% | 0.25% | 1.88% |
|

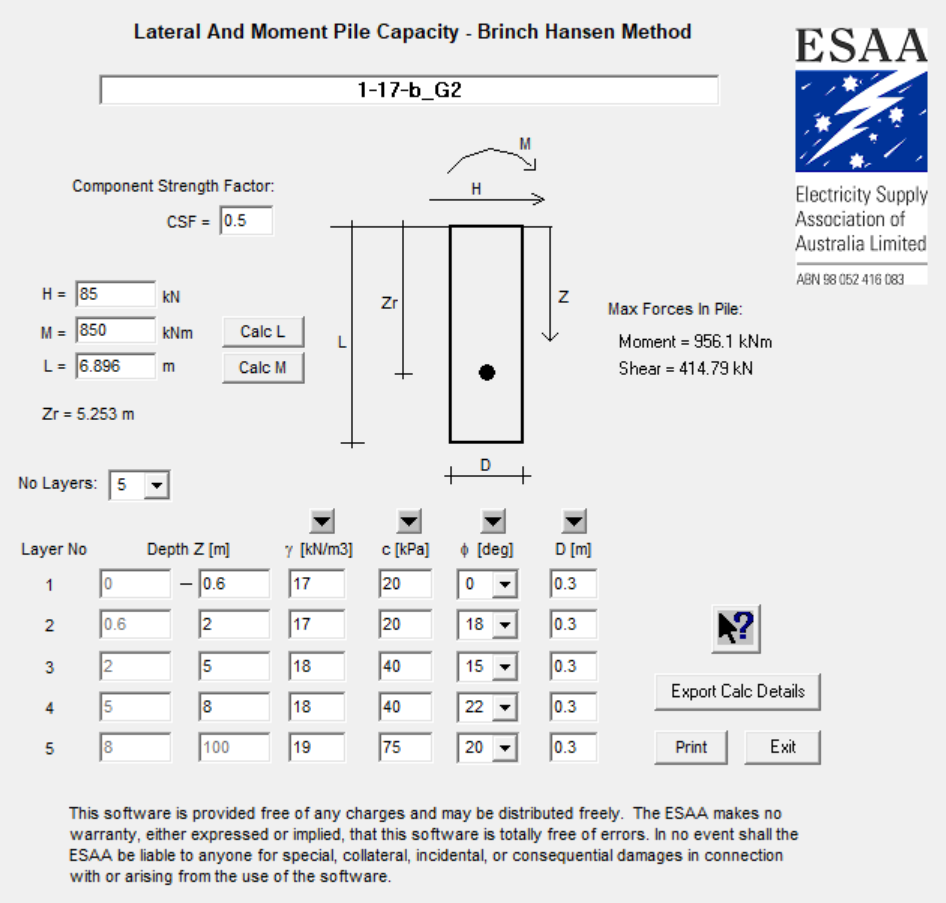

| 1-17-b_G2 | 6.88 m | 6.90 m | -0.23% | 0.32% | 0.03% | 0.98% |
|

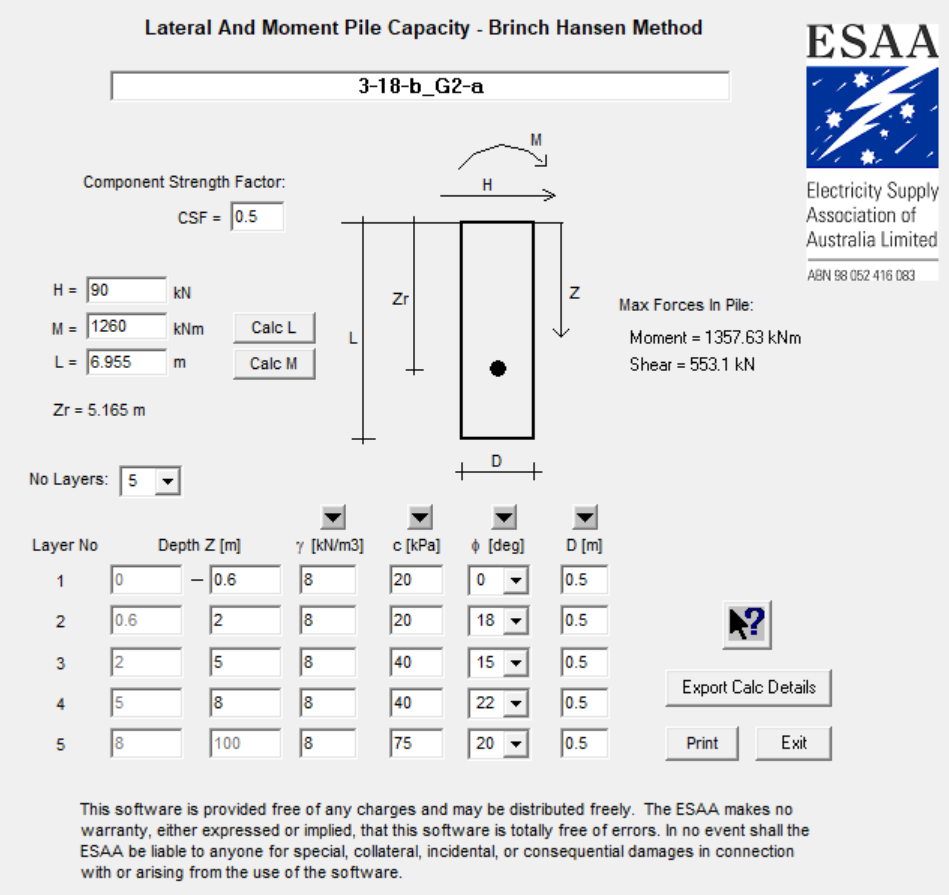

| 3-18-b_G2-a | 6.96 m | 6.96 m | 0.07% | 0.68% | 1.04% | 1.55% |
|

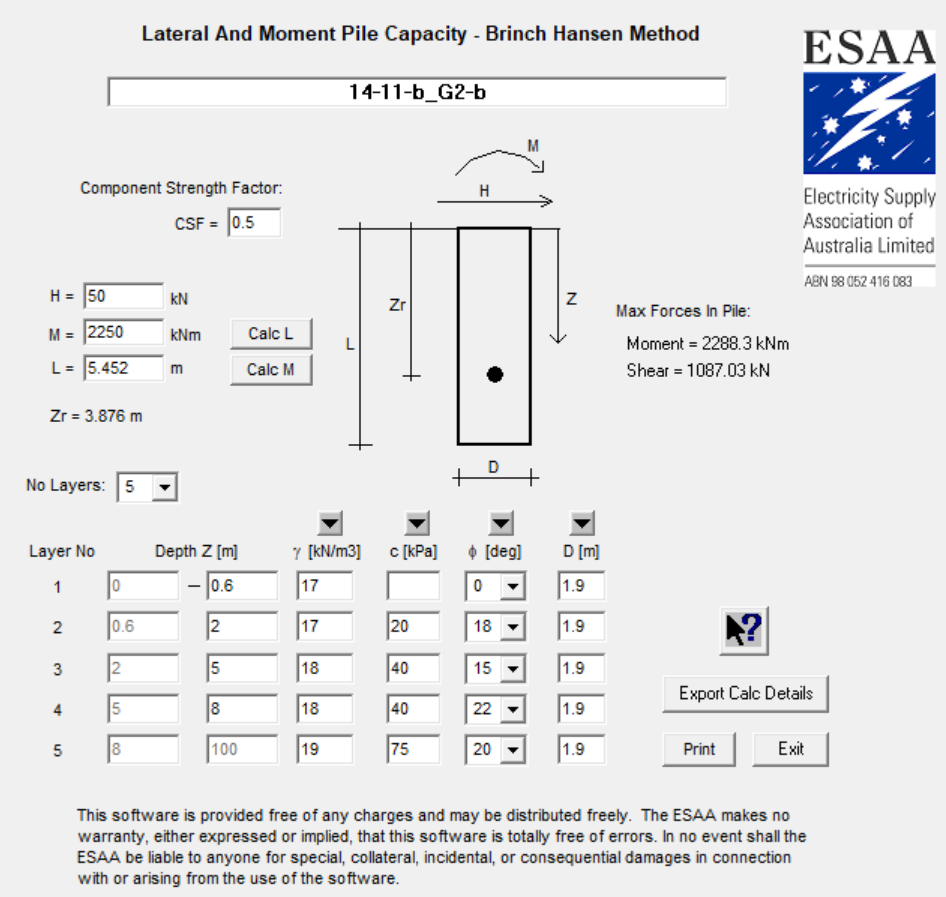

| 14-11-b_G2-b | 5.48 m | 5.45 m | 0.51% | 1.39% | 0.76% | 1.57% |
|

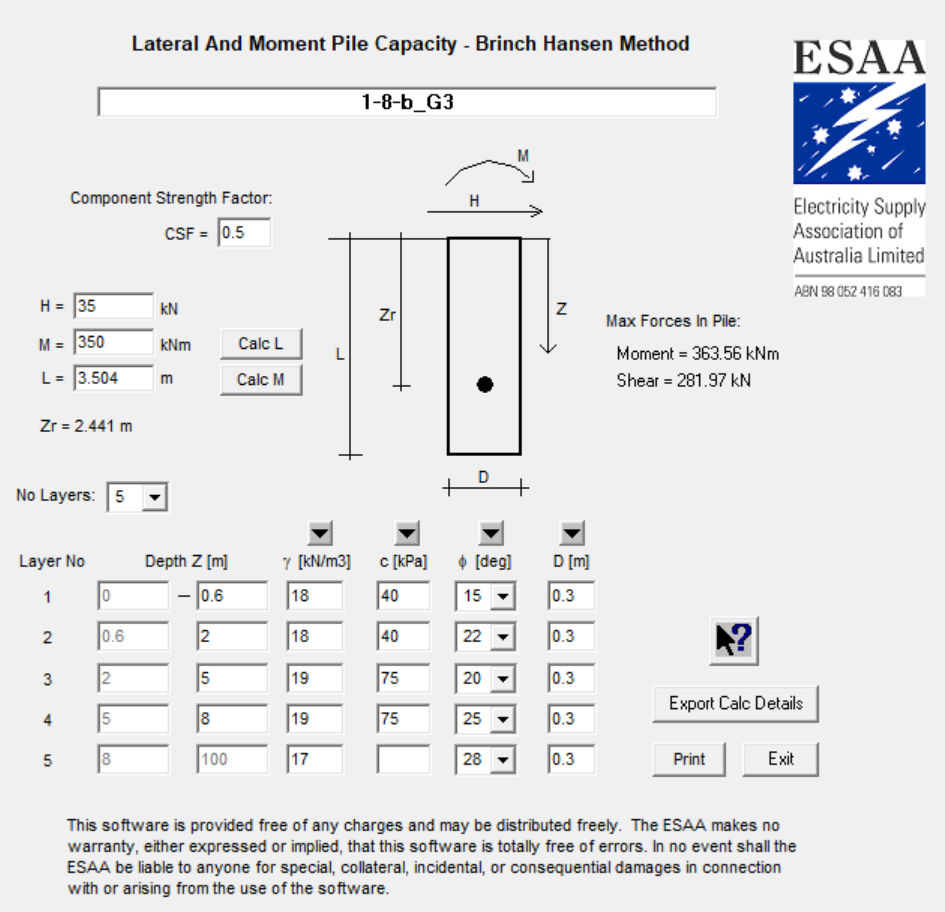

| 1-8-b_G3 | 3.51 m | 3.50 m | 0.17% | 0.37% | 0.82% | 1.12% |
|

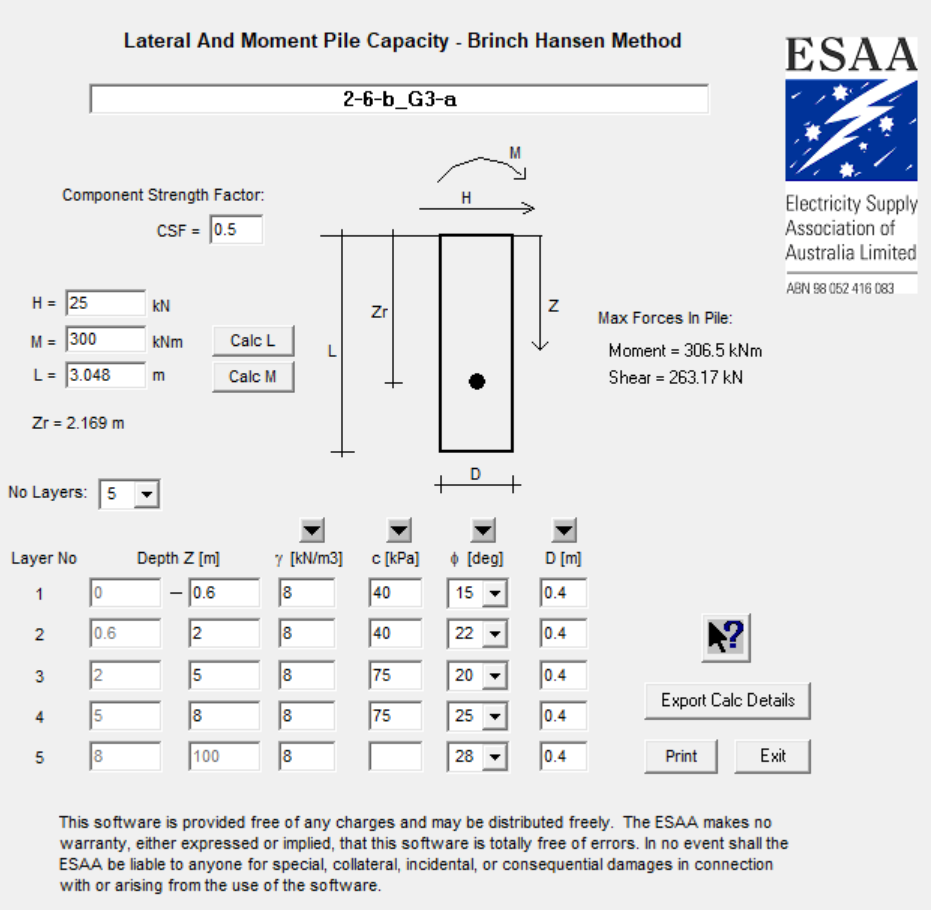

| 2-6-b_G3-a | 3.07 m | 3.05 m | 0.72% | 0.97% | 1.07% | 1.50% |
|

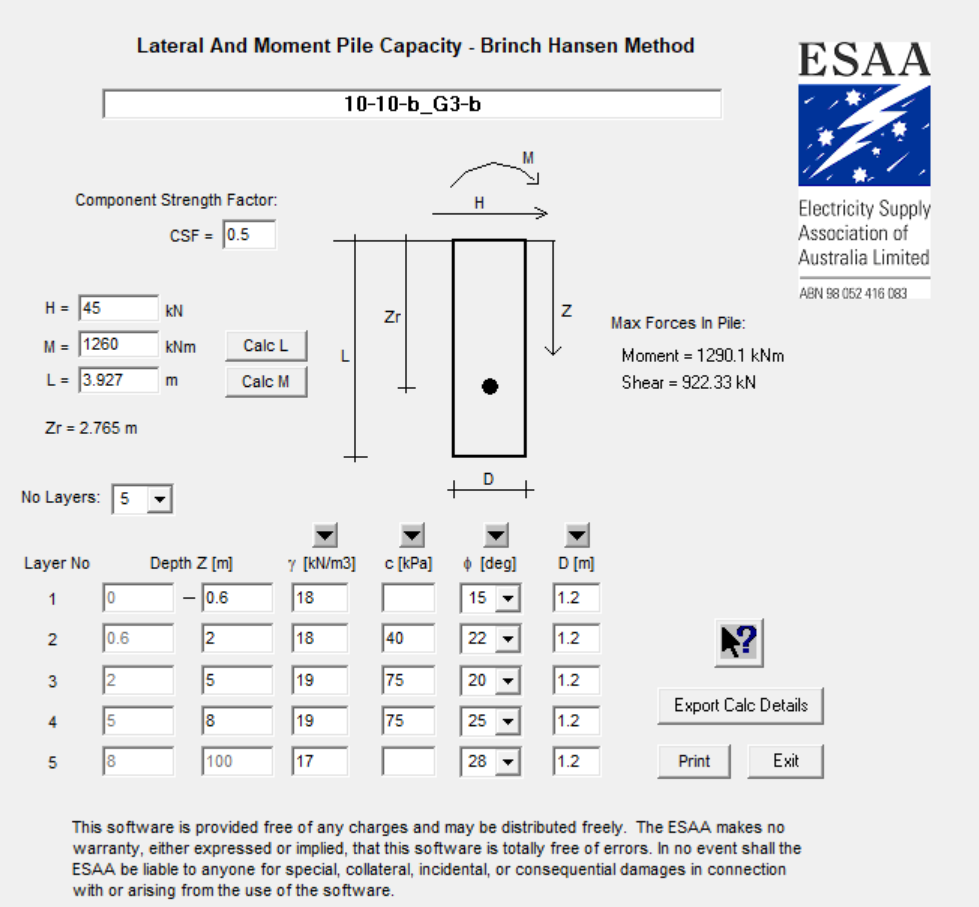

| 10-10-b_G3-b | 3.95 m | 3.93 m | 0.59% | 0.90% | 1.48% | 1.63% |
|
| 14-3-b_G4 | 1.75 m | 1.71 m | 2.22% | 3.93% | 1.87% | 0.61% |
|

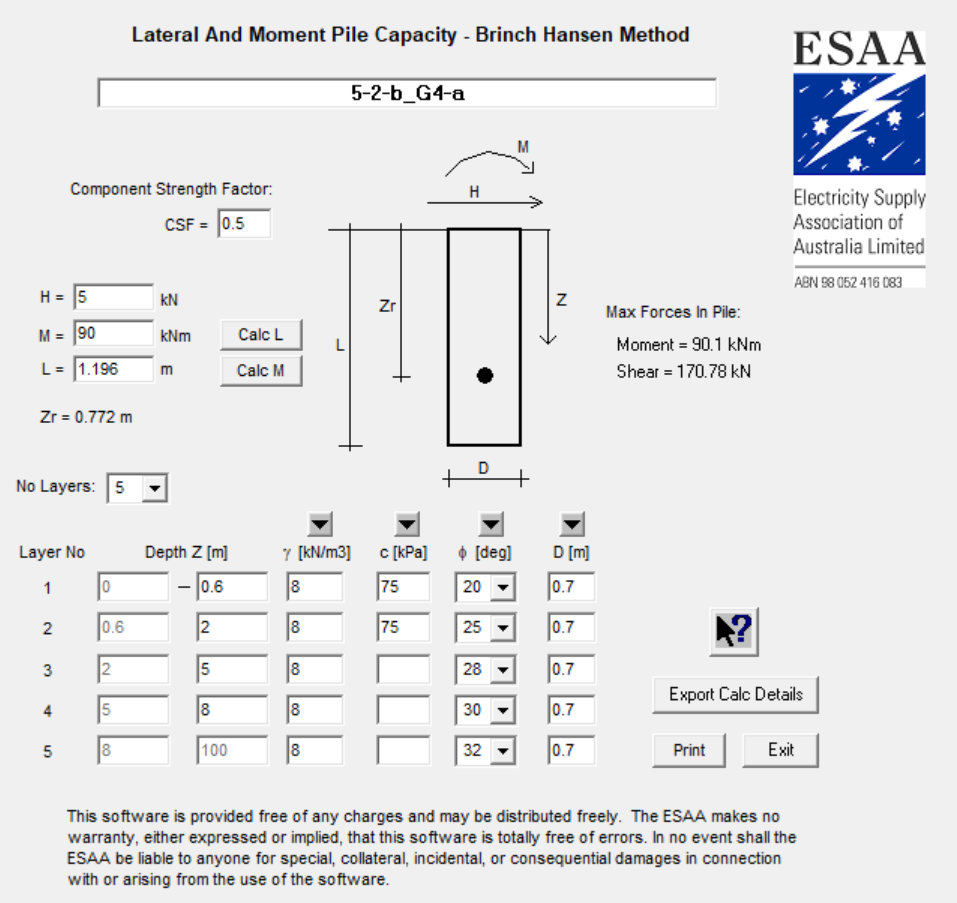

| 5-2-b_G4-a | 1.23 m | 1.20 m | 2.84% | 4.92% | 4.04% | 3.19% |
|

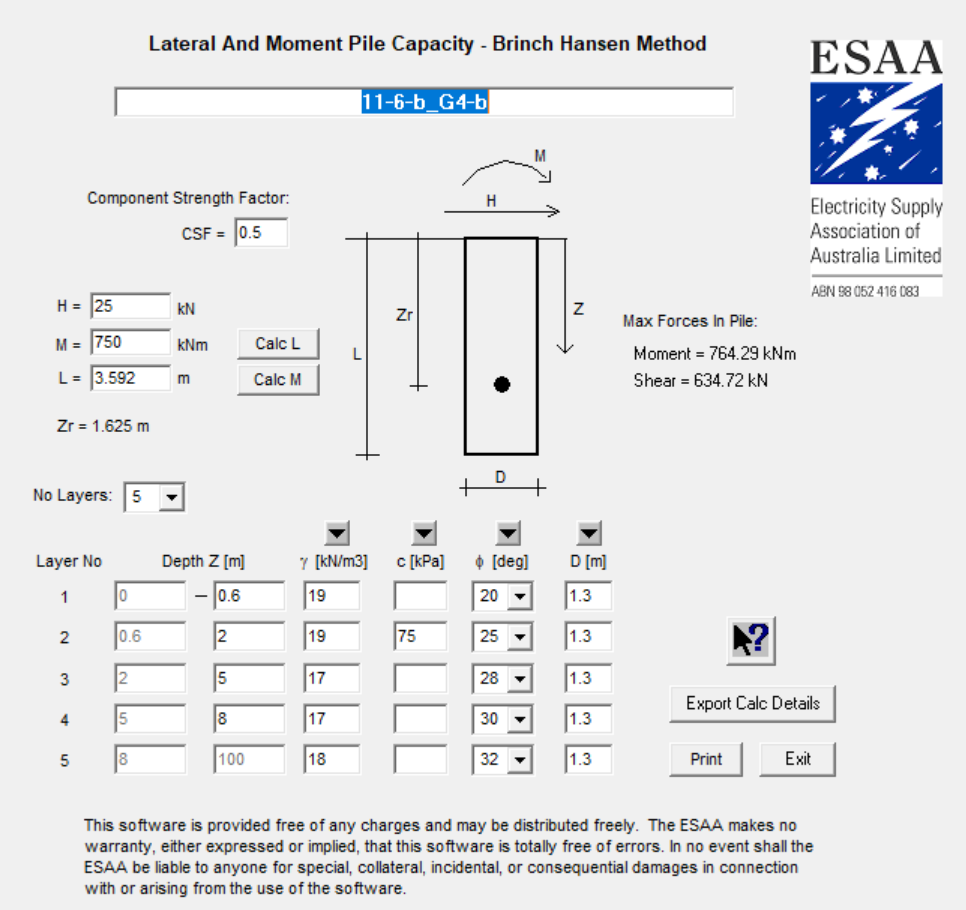

| 11-6-b_G4-b | 3.61 m | 3.59 m | 0.50% | 1.54% | 1.12% | 0.39% |
|

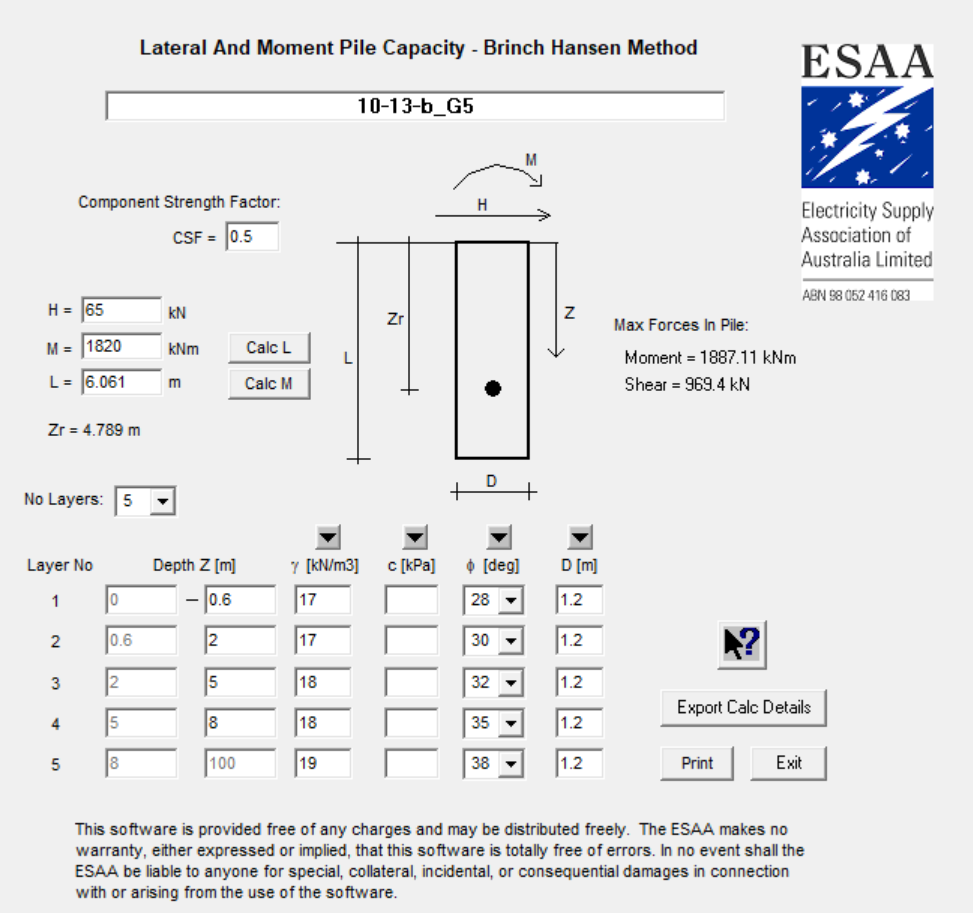

| 10-13-b_G5 | 6.07 m | 6.06 m | 0.15% | 0.02% | 1.84% | 1.86% |
|
| 3-20-b_G5-a | 8.67 m | 8.70 m | -0.29% | 0.00% | 0.50% | 0.81% |
|

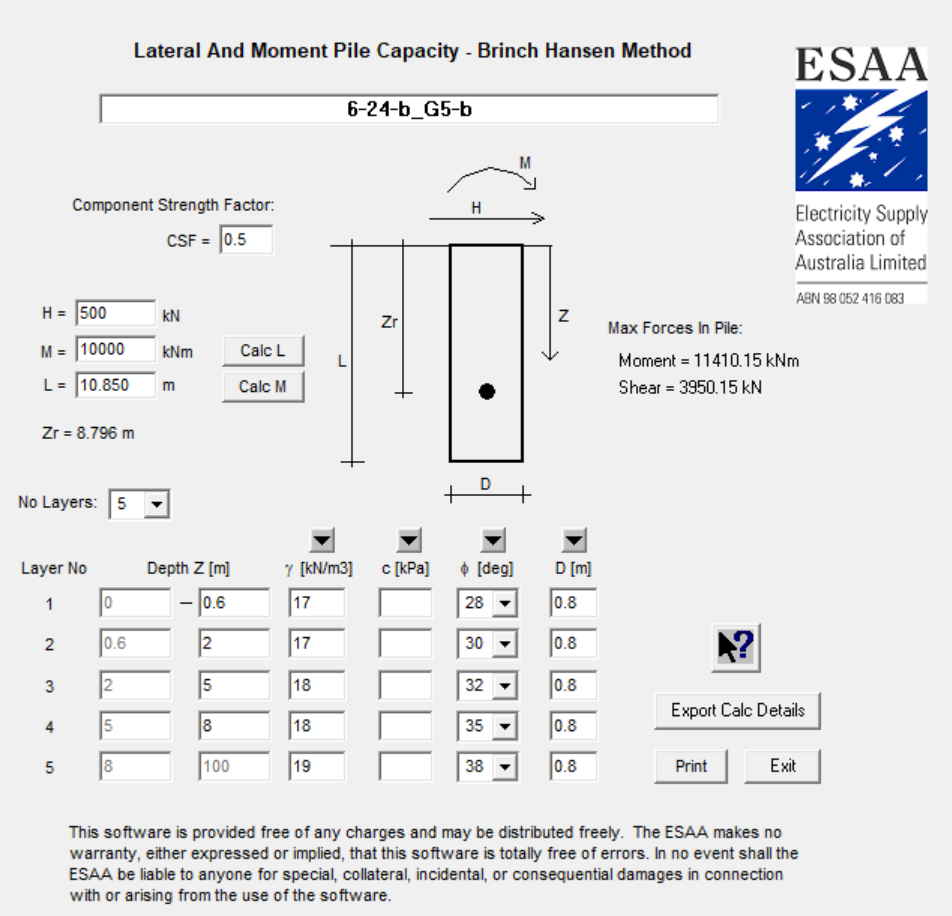

| 6-24-b_G5-b | 10.82 m | 10.85 m | -0.28% | 0.16% | 0.59% | 1.79% |
|
| 6-5-b_G6 | 3.72 m | 3.71 m | 0.32% | 0.77% | 3.25% | 4.16% |
|

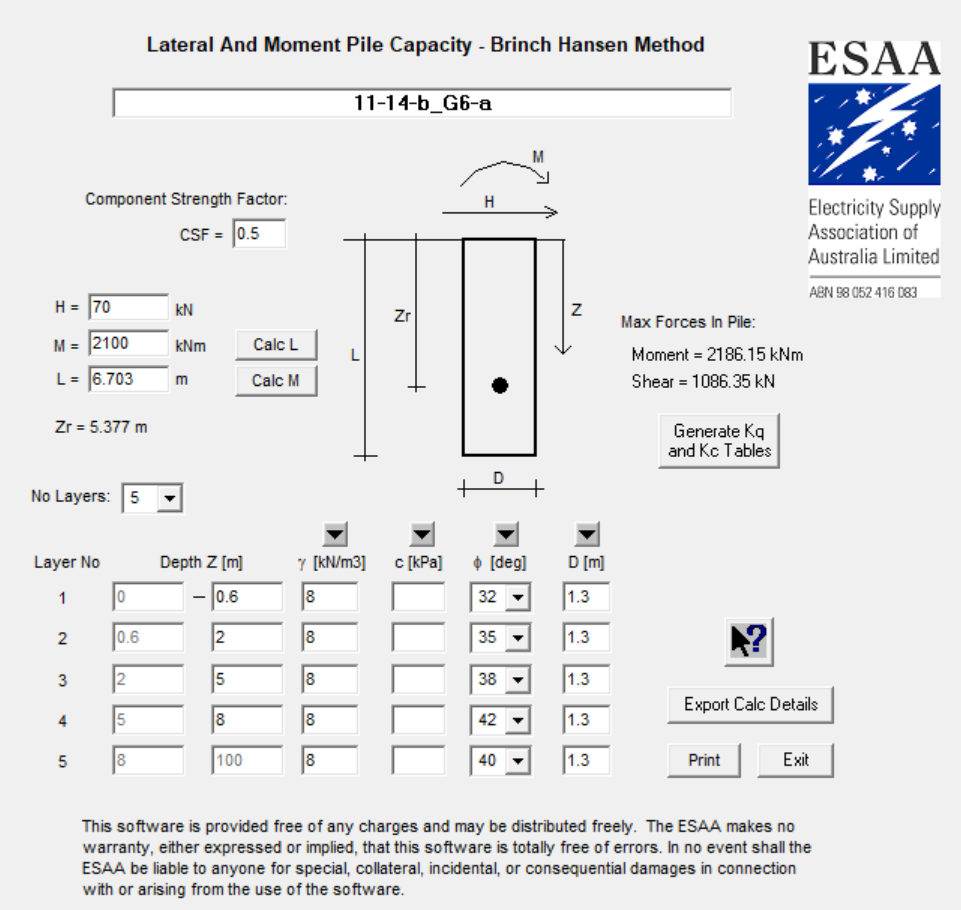

| 11-14-b_G6-a | 6.67 m | 6.70 m | -0.49% | -0.13% | 0.69% | 1.84% |
|

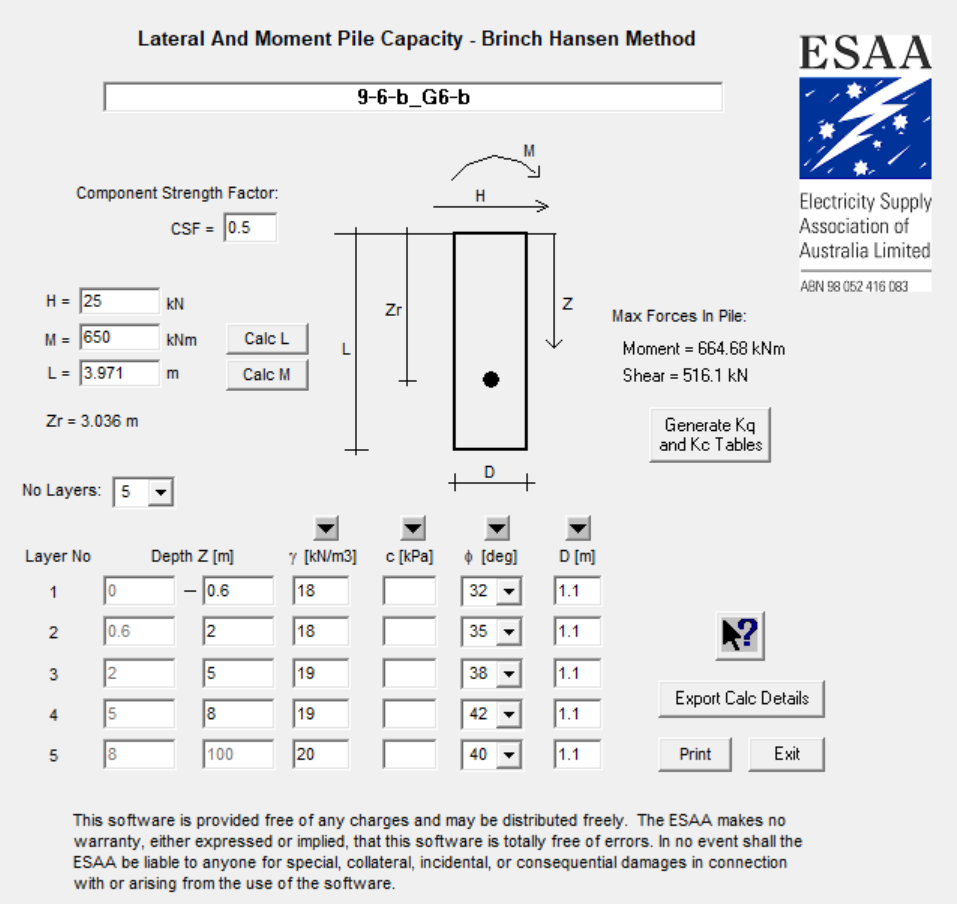

| 9-6-b_G6-b | 3.97 m | 3.97 m | -0.03% | 0.46% | 1.23% | 3.00% |
|
| 5-11-b_G7 | 4.34 m | 4.32 m | 0.49% | 0.52% | 3.40% | 2.86% |
|

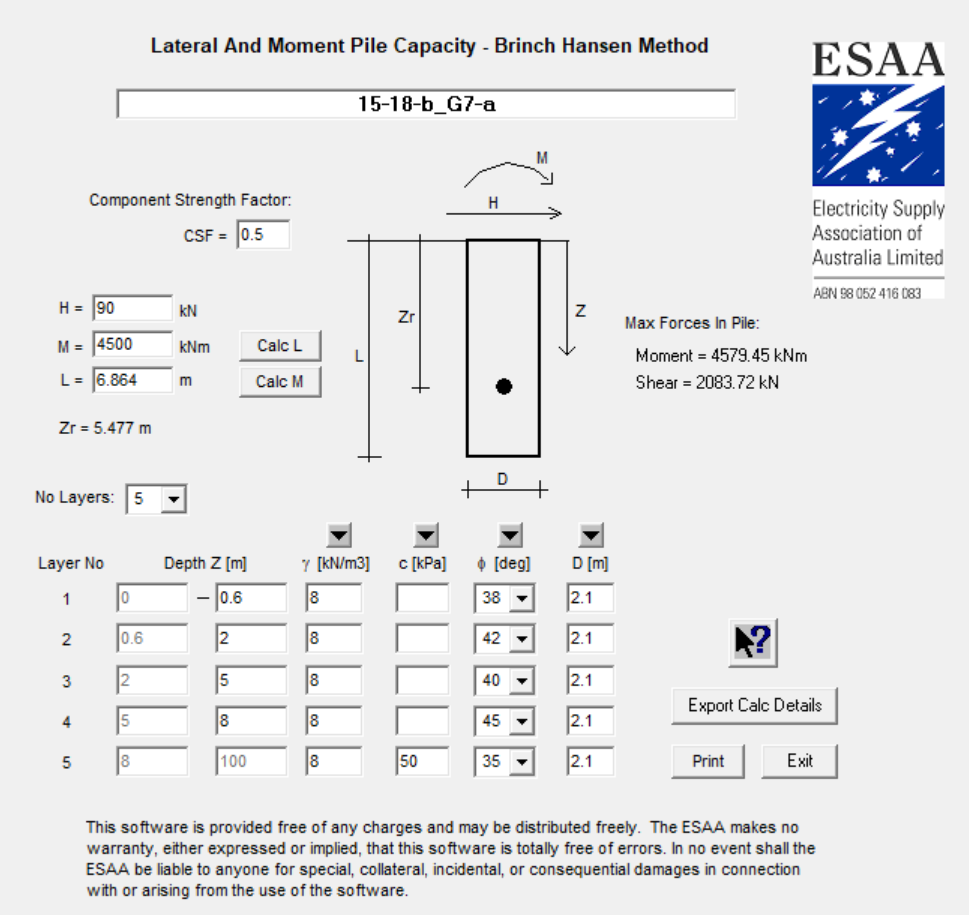

| 15-18-b_G7-a | 6.86 m | 6.86 m | -0.06% | 0.05% | 0.58% | 0.43% |
|
| 12-17-b_G7-b | 5.15 m | 5.14 m | 0.19% | 0.41% | 1.60% | 1.78% |
|

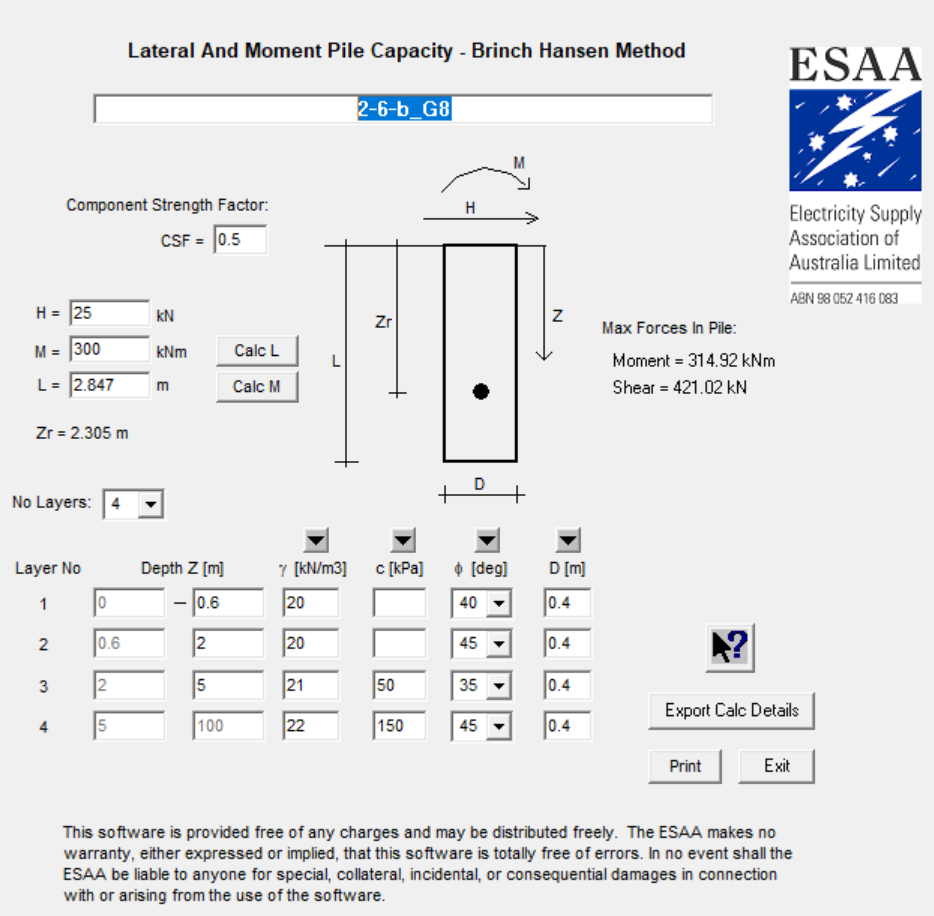

| 2-6-b_G8 | 2.87 m | 2.85 m | 0.81% | 1.08% | 1.68% | 2.49% |
|
| 5-18-b_G8-a | 4.56 m | 4.54 m | 0.55% | 0.80% | 1.57% | 1.95% |
|
| 14-15-b_G8-b | 4.18 m | 4.16 m | 0.55% | 0.85% | 1.60% | 1.98% |
|
| 8-6-b_G9-a | 1.37 m | 1.34 m | 2.24% | 2.93% | 7.46% | 5.75% |
|

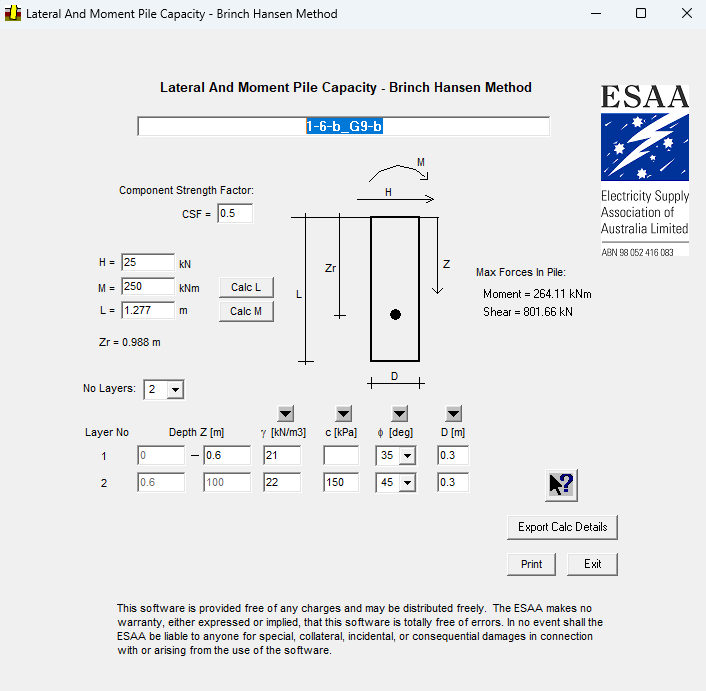

| 1-6-b_G9-b | 1.28 m | 1.28 m | 0.23% | 1.21% | 1.07% | 1.75% |
|
| 2-20-c_G1 | 9.11 m | 9.07 m | 0.40% | 0.35% | 1.40% | 2.25% |
|
| 9-15-c_G1-a | 8.10 m | 8.06 m | 0.48% | 0.89% | 1.19% | 2.68% |
|
| 10-5-c_G1-b | 5.14 m | 5.13 m | 0.25% | 1.75% | 0.62% | 0.79% |
|
| 14-20-c_G2 | 6.03 m | 6.00 m | 0.50% | 1.51% | 0.46% | 1.42% |
|
| 2-21-c_G2-a | 8.53 m | 8.53 m | -0.05% | 0.22% | 0.36% | 1.80% |
|
| 6-23-c_G2-b | 9.63 m | 9.63 m | -0.02% | -0.04% | 0.38% | 1.21% |
|

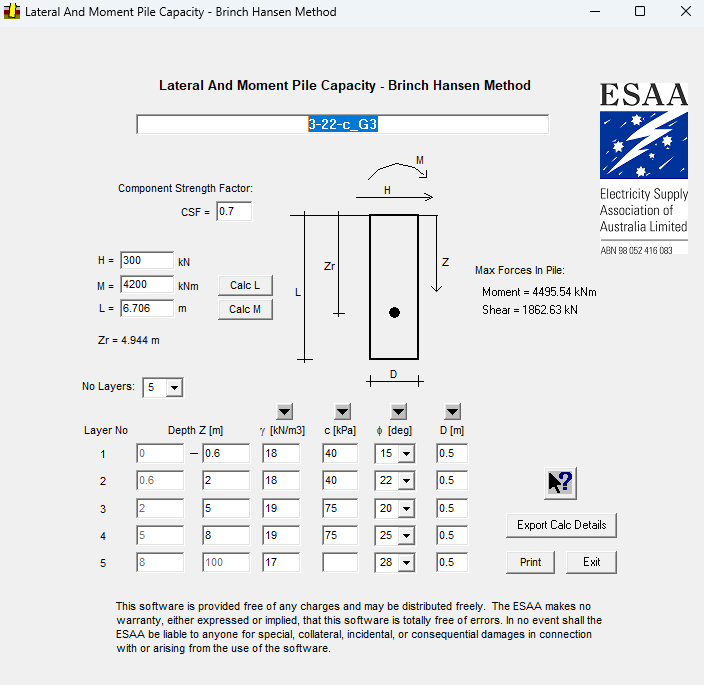

| 3-22-c_G3 | 6.73 m | 6.71 m | 0.36% | 0.73% | 0.43% | 0.57% |
|
| 7-15-c_G3-a | 4.12 m | 4.09 m | 0.76% | 1.07% | 1.69% | 1.84% |
|
| 12-2-c_G4 | 1.11 m | 1.08 m | 3.26% | 4.72% | 4.35% | 1.34% |
|
| 14-12-c_G4-a | 5.23 m | 5.21 m | 0.46% | 2.55% | 0.80% | -0.92% |
|
| 4-6-c_G4-b | 2.97 m | 2.94 m | 1.09% | 1.32% | 1.66% | 1.09% |
|
| 1-12-c_G5 | 5.59 m | 5.58 m | 0.20% | 0.27% | 1.56% | 2.99% |
|
| 13-10-c_G5-a | 6.31 m | 6.31 m | -0.05% | -0.26% | 1.05% | 1.03% |
|
| 10-12-c_G5-b | 5.40 m | 5.38 m | 0.32% | 0.70% | 0.92% | 2.74% |
|

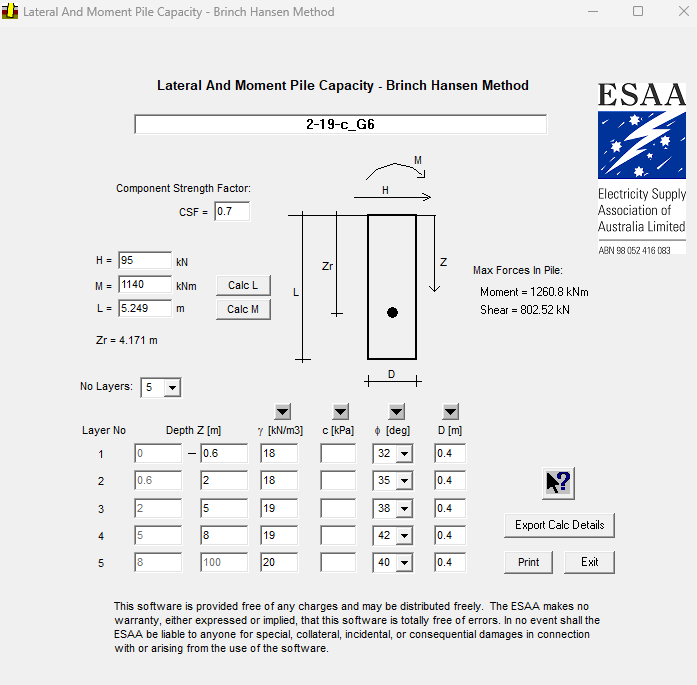

| 2-19-c_G6 | 5.24 m | 5.25 m | -0.17% | 0.22% | 1.11% | 2.84% |
|
| 12-2-c_G6-a | 2.87 m | 2.87 m | 0.00% | 0.73% | 1.74% | 2.32% |
|
| 4-5-c_G6-b | 3.35 m | 3.36 m | -0.30% | 0.31% | 0.31% | 2.12% |
|
| 5-5-c_G7 | 2.90 m | 2.91 m | -0.24% | -0.47% | 0.66% | 1.19% |
|
| 7-6-c_G7-a | 4.12 m | 4.12 m | 0.00% | -0.03% | 1.96% | 1.83% |
|
| 9-17-c_G7-b | 4.61 m | 4.62 m | -0.17% | -0.17% | 1.09% | 1.22% |
|
| 15-13-c_G8 | 3.64 m | 3.62 m | 0.47% | 0.74% | 1.30% | 1.69% |
|
| 4-3-c_G8-a | 2.47 m | 2.43 m | 1.77% | 1.68% | 3.08% | 7.53% |
|
| 4-13-c_G8-b | 3.41 m | 3.38 m | 0.80% | 1.03% | 2.72% | 2.66% |
|
| 10-4-c_G9 | 1.08 m | 1.06 m | 2.37% | 3.32% | 5.07% | 5.89% |
|
| 13-15-c_G9-b | 1.91 m | 1.88 m | 1.54% | 2.24% | 4.84% | 3.87% |
|
| 7-14-d_G1 | 6.89 m | 6.85 m | 0.60% | 0.86% | 0.66% | 2.82% |
|

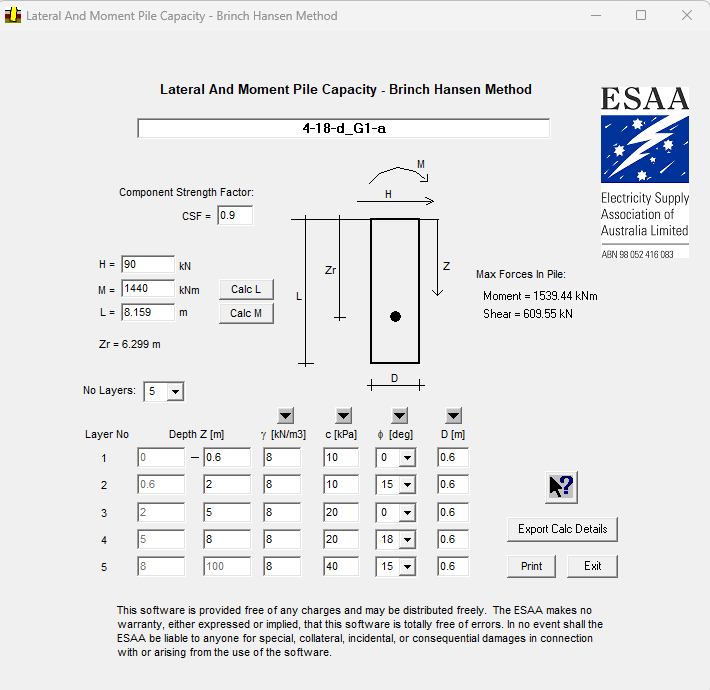

| 4-18-d_G1-a | 8.17 m | 8.16 m | 0.13% | 0.49% | 0.30% | 2.05% |
|
| 5-22-d_G1-b | 11.33 m | 11.34 m | -0.06% | -0.16% | 0.37% | 0.67% |
|
| 13-14-d_G2 | 5.03 m | 5.00 m | 0.68% | 1.53% | 0.89% | 1.77% |
|
| 12-12-d_G2-a | 4.93 m | 4.88 m | 1.00% | 1.52% | 0.63% | 1.56% |
|
| 9-12-d_G2-b | 4.71 m | 4.69 m | 0.38% | 0.68% | 1.21% | 1.52% |
|
| 15-23-d_G3 | 7.01 m | 6.97 m | 0.63% | 0.89% | 0.82% | 0.91% |
|
| 5-23-d_G3-a | 6.97 m | 6.95 m | 0.29% | 0.52% | 0.40% | 0.42% |
|
| 4-16-d_G3-b | 3.89 m | 3.87 m | 0.41% | 0.55% | 1.54% | 1.58% |
|
| 7-20-d_G4 | 4.47 m | 4.46 m | 0.20% | 1.59% | 1.03% | 0.52% |
|
| 11-16-d_G4-a | 5.06 m | 5.06 m | 0.02% | 1.67% | 0.19% | -0.23% |
|
| 14-8-d_G4-b | 3.45 m | 3.41 m | 1.20% | 2.26% | 1.72% | -0.24% |
|
| 14-21-d_G5 | 7.33 m | 7.32 m | 0.18% | 0.12% | 1.64% | 1.56% |
|
| 4-22-d_G5-a | 9.97 m | 10.00 m | -0.31% | 0.24% | 0.56% | 1.35% |
|
| 11-19-d_G5-b | 5.72 m | 5.71 m | 0.23% | 0.22% | 2.30% | 2.56% |
|
| 3-12-d_G6 | 4.29 m | 4.31 m | -0.51% | -0.09% | 0.36% | 2.24% |
|
| 4-9-d_G6-a | 4.88 m | 4.88 m | 0.06% | 0.37% | 2.78% | 3.81% |
|
| 1-11-d_G6-b | 4.13 m | 4.14 m | -0.34% | 0.19% | 0.87% | 2.95% |
|
| 11-9-d_G7 | 3.35 m | 3.35 m | -0.12% | -0.16% | 0.64% | 1.22% |
|
| 6-18-d_G7-a | 5.51 m | 5.51 m | -0.05% | 0.00% | 0.94% | 0.65% |
|
| 3-6-d_G7-b | 2.89 m | 2.89 m | 0.17% | -0.14% | 3.23% | 2.49% |
|
| 7-6-d_G8 | 2.43 m | 2.40 m | 1.29% | 1.34% | 4.63% | 4.56% |
|
| 6-10-d_G8-a | 3.27 m | 3.25 m | 0.71% | 0.92% | 2.55% | 2.70% |
|
| 3-5-d_G8-b | 2.27 m | 2.24 m | 1.20% | 2.44% | 4.06% | 4.99% |
|
| 10-23-d_G9 | 2.75 m | 2.74 m | 0.22% | 0.73% | 0.61% | 1.35% |
|
| 15-22-d_G9-a | 2.80 m | 2.77 m | 1.01% | 1.59% | 2.80% | 2.74% |
|
| 13-4-d_G9-b | 1.17 m | 1.14 m | 2.36% | 3.25% | 7.86% | 5.85% |
|
| 9-20-e_G1 | 7.47 m | 7.43 m | 0.58% | 0.86% | 0.62% | 2.82% |
|
| 1-6-e_G1-a | 5.28 m | 5.27 m | 0.25% | 1.52% | 1.11% | 1.46% |
|
| 2-3-e_G1-b | 3.70 m | 3.68 m | 0.54% | 0.80% | 0.80% | 0.32% |
|
| 14-12-e_G2 | 4.65 m | 4.59 m | 1.35% | 2.04% | 1.14% | 2.03% |
|
| 13-13-e_G2-a | 4.96 m | 4.90 m | 1.25% | 1.82% | 1.00% | 1.86% |
|
| 7-13-e_G2-b | 4.67 m | 4.65 m | 0.54% | 0.75% | 1.72% | 1.82% |
|
| 13-5-e_G3 | 2.23 m | 2.20 m | 1.50% | 4.22% | 0.68% | 2.00% |
|
| 14-21-e_G3-a | 5.45 m | 5.41 m | 0.81% | 1.68% | 0.50% | 1.47% |
|
| 2-19-e_G3-b | 4.06 m | 4.05 m | 0.22% | 0.53% | 0.67% | 1.16% |
|
| 11-11-e_G4 | 3.17 m | 3.12 m | 1.47% | 2.46% | 0.29% | 0.00% |
|
| 2-6-e_G4-a | 1.75 m | 1.73 m | 0.92% | 2.15% | 0.55% | 1.52% |
|
| 14-2-e_G4-b | 1.39 m | 1.36 m | 2.13% | 3.07% | 2.40% | 0.96% |
|
| 14-18-e_G5 | 5.60 m | 5.59 m | 0.23% | 0.30% | 2.16% | 2.63% |
|
| 9-23-e_G5-a | 10.40 m | 10.43 m | -0.33% | 0.11% | 0.57% | 1.23% |
|
| 13-17-e_G5-b | 5.48 m | 5.46 m | 0.29% | 0.62% | 0.80% | 2.50% |
|
| 9-22-e_G6 | 6.52 m | 6.54 m | -0.34% | 0.02% | 1.11% | 2.18% |
|
| 2-4-e_G6-a | 3.56 m | 3.56 m | 0.14% | 0.72% | 1.81% | 3.60% |
|
| 2-10-e_G6-b | 3.87 m | 3.86 m | 0.34% | 0.80% | 3.37% | 4.49% |
|

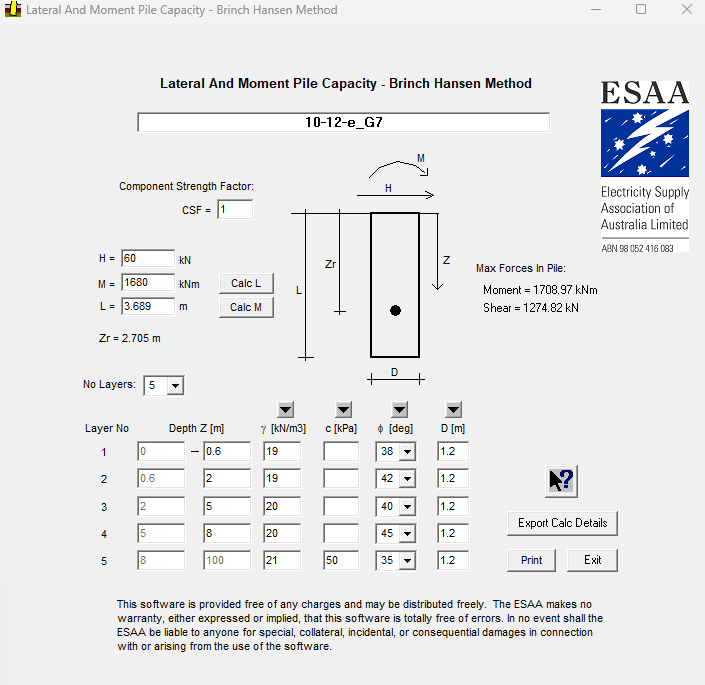

| 10-12-e_G7 | 3.70 m | 3.69 m | 0.30% | 0.18% | 3.30% | 2.59% |
|
| 9-6-e_G7-a | 3.69 m | 3.68 m | 0.22% | 0.11% | 2.85% | 2.30% |
|
| 14-4-e_G7-b | 2.43 m | 2.44 m | -0.25% | -0.40% | 2.75% | 3.29% |
|
| 4-6-e_G8 | 2.34 m | 2.32 m | 0.91% | 2.03% | 1.45% | 3.19% |
|
| 11-12-e_G8-a | 3.48 m | 3.47 m | 0.23% | 0.51% | 1.24% | 1.60% |
|
| 15-3-e_G8-b | 1.90 m | 1.91 m | -0.47% | 0.00% | 0.08% | 1.35% |
|
| 15-22-e_G9 | 2.67 m | 2.65 m | 0.87% | 1.50% | 2.15% | 2.42% |
|

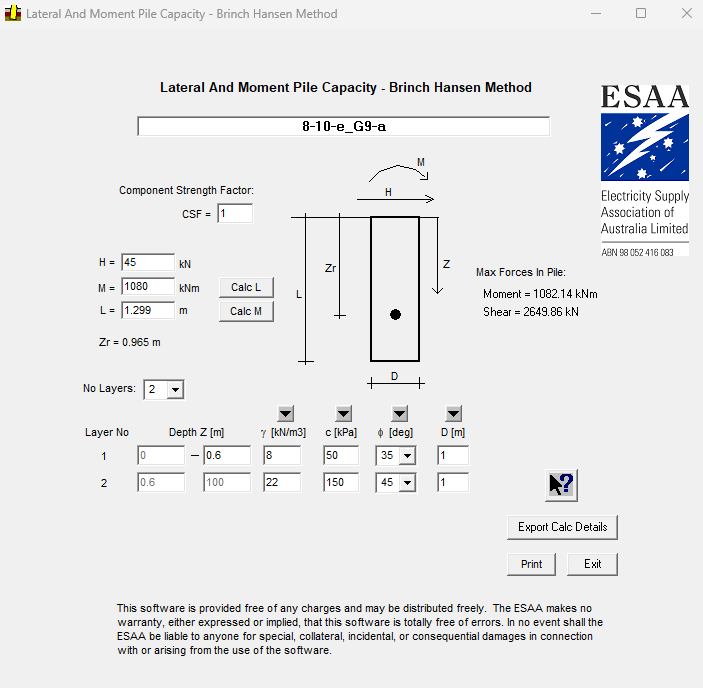

| 8-10-e_G9-a | 1.32 m | 1.30 m | 1.62% | 2.59% | 3.95% | 4.15% |
|
| 14-10-e_G9-b | 1.51 m | 1.49 m | 1.55% | 2.47% | 4.32% | 3.66% |
|
| 15-13-f_G1 | 5.66 m | 5.61 m | 0.91% | 4.47% | 0.33% | 2.76% |
|
| 1-12-f_G1-a | 6.25 m | 6.22 m | 0.50% | 0.80% | 0.51% | 2.17% |
|
| 2-11-f_G1-b | 5.42 m | 5.42 m | 0.09% | 1.29% | 0.32% | 0.91% |
|

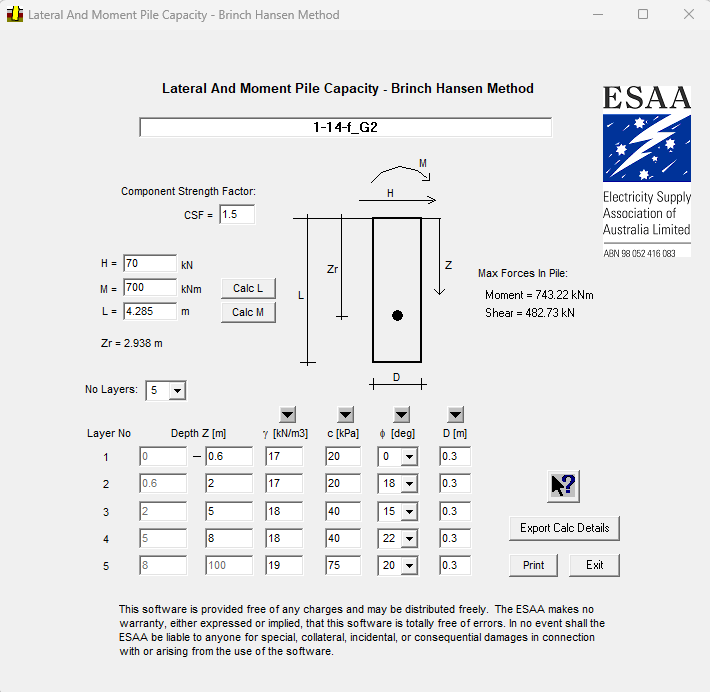

| 1-14-f_G2 | 4.31 m | 4.29 m | 0.58% | 0.75% | 1.66% | 1.72% |
|

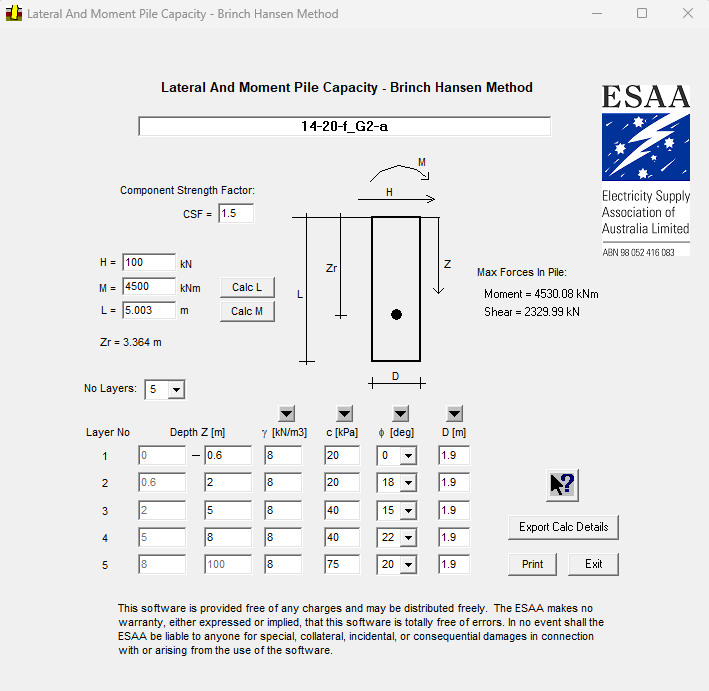

| 14-20-f_G2-a | 5.06 m | 5.00 m | 1.14% | 2.26% | 2.50% | 2.70% |
|
| 6-10-f_G2-b | 3.54 m | 3.52 m | 0.54% | 0.84% | 1.73% | 1.67% |
|
| 2-24-f_G3 | 6.21 m | 6.19 m | 0.26% | 0.60% | 0.52% | 0.72% |
|
| 5-13-f_G3-a | 2.86 m | 2.84 m | 0.88% | 1.32% | 0.49% | 1.54% |
|
| 6-6-f_G3-b | 2.20 m | 2.19 m | 0.27% | 1.07% | 1.07% | 1.86% |
|
| 8-24-f_G4-a | 7.85 m | 7.82 m | 0.38% | 3.09% | 0.32% | 0.50% |
|
| 6-3-f_G4-b | 1.40 m | 1.38 m | 1.60% | 2.34% | 5.65% | 3.97% |
|
| 11-23-f_G5 | 7.53 m | 7.53 m | -0.05% | -0.12% | 1.07% | 1.07% |
|
| 13-19-f_G5-a | 6.30 m | 6.28 m | 0.25% | 0.08% | 2.23% | 1.91% |
|
| 15-7-f_G5-b | 3.64 m | 3.62 m | 0.66% | 1.26% | 3.26% | 4.03% |
|
| 10-17-f_G6 | 4.14 m | 4.13 m | 0.34% | 0.76% | 3.02% | 4.09% |
|
| 13-12-f_G6-a | 4.86 m | 4.86 m | 0.10% | 0.44% | 2.43% | 3.58% |
|
| 11-17-f_G6-b | 4.12 m | 4.13 m | -0.27% | 0.19% | 0.78% | 2.53% |
|
| 9-22-f_G7 | 5.29 m | 5.28 m | 0.19% | 0.44% | 1.57% | 1.64% |
|
| 2-9-f_G7-a | 3.75 m | 3.76 m | -0.13% | -0.11% | 1.24% | 1.38% |
|
| 5-5-f_G7-b | 2.28 m | 2.29 m | -0.52% | -0.30% | 1.61% | 2.59% |
|
| 15-13-f_G8-a | 3.38 m | 3.35 m | 0.87% | 1.06% | 2.15% | 2.69% |
|
| 8-7-f_G9 | 1.04 m | 1.02 m | 1.86% | 3.02% | 1.41% | 4.41% |
|
| 13-10-f_G9-a | 1.24 m | 1.22 m | 1.31% | 2.42% | 1.79% | 3.26% |
|
| 7-8-f_G9-b | 1.18 m | 1.16 m | 1.46% | 2.20% | 6.78% | 4.85% |
|
method
Validation Method
- Reference values are generated with the currently available Brinch Hansen calculation application (BHPile).
- Percent error is calculated as (HVTLHub - BHPile) / BHPile * 100.
- Box plot whiskers use the standard 1.5 IQR rule. Box plot reference.
