PLS-CADD QA/QC
PLS-CADD Report Checks
Select report checks, upload the required PLS-CADD XML export, and generate review tables without relying on the filename.
All XML files listed below and used for report generation shall be exported using XML Export → Export All.
PLS-CADD Settings
XML Export Includes
Check File → Preferences → XML Export includes and ensure that only one active line is included.
PLS-CADD Settings

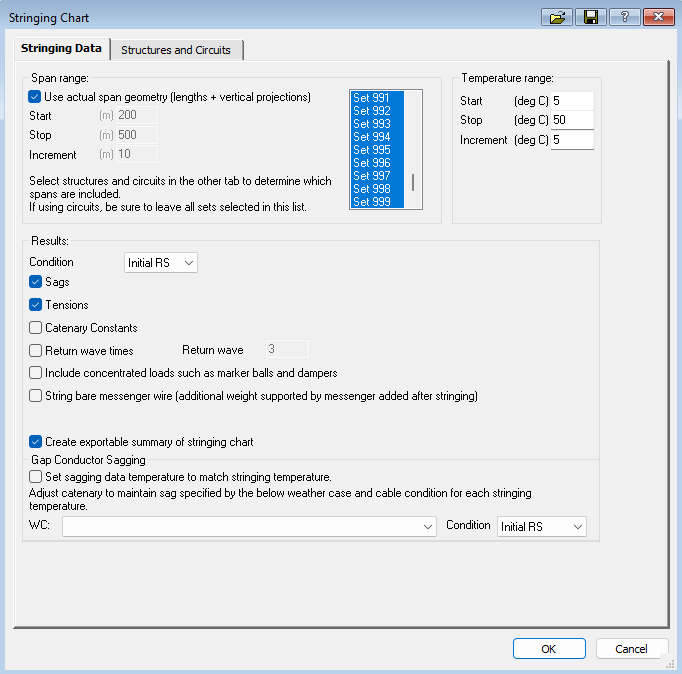

Stringing Chart
- Sagging tensions shall be defined in Sections → Table.
- Any sections to be included in the analysis shall be unclipped.
- Circuits and phases shall be defined in Sections → Electric.
PLS-CADD Settings
External Clearances
PLS-CADD Settings
Shield / Phase Sag Ratio
PLS-CADD Settings
Lightning Protection Study Input

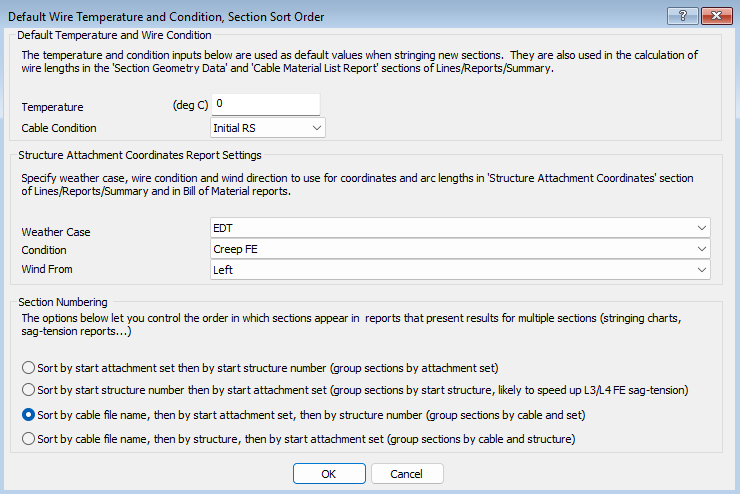

Criteria → Default Wire Temperature and Condition → Structure Attachment Coordinates Report Settings. The selected condition should typically represent everyday conditions after creep, unless project-specific requirements dictate otherwise.
